Tcm location

Maybe a dumb question but where is the tcm located on an 02 SE. Im doing an autostick install and Im not sure where its located, I know to plug in the wires at pin 5 and pin 44 but not sure where they are.

pics would help if possible.

THANKS
freezingbelow is offline
Sponsored Links
Advertisement

post #2 of 8 (permalink) Old 05-06-2007, 06:04 PM Thread Starter
Intrepid Pro

freezingbelow's Avatar

Join Date: Feb 2007
Location: Tyngsboro Mass
Posts: 2,654
Feedback: 13 / 100%

So im guessing this is the tcm? The others ine seen seem to hane 1 large connecter coming out of it. This one has 4 connecters. A black one two white ones and a green one. Whats next?

freezingbelow is offline
post #3 of 8 (permalink) Old 05-06-2007, 06:10 PM
Dain bramaged



Veeb0rg's Avatar

Join Date: Jul 2001
Location: Maryland
Posts: 7,140
Feedback: 6 / 100%

i believe the tcm and pcm on the 02's are on unit.. don't quote me on that, but i'm pretty sure.
Veeb0rg is offline
post #4 of 8 (permalink) Old 05-06-2007, 06:12 PM Thread Starter
Intrepid Pro

freezingbelow's Avatar

Join Date: Feb 2007
Location: Tyngsboro Mass
Posts: 2,654
Feedback: 13 / 100%

lol thanks but that doesnt help me. Is this the right thing at least?
freezingbelow is offline
post #5 of 8 (permalink) Old 05-06-2007, 06:58 PM
Intrepid Pro

I beata firebird ina ES's Avatar

Join Date: Aug 2005
Location: Yorkville,Illinois home of the most bitchass cops in America.
Posts: 3,411
Feedback: 7 / 100%

i know on the 99 i did last night the TCM was under the cruise control thingie.
I beata firebird ina ES is offline
post #6 of 8 (permalink) Old 05-07-2007, 12:10 AM Thread Starter
Intrepid Pro

freezingbelow's Avatar

Join Date: Feb 2007
Location: Tyngsboro Mass
Posts: 2,654
Feedback: 13 / 100%

Like I said i know jack about engines and I have no clue what the cc thingie looks like. so If a pic could be provided it would be a big help
freezingbelow is offline
post #7 of 8 (permalink) Old 05-07-2007, 12:49 AM
Intrepid Pro

I beata firebird ina ES's Avatar

Join Date: Aug 2005
Location: Yorkville,Illinois home of the most bitchass cops in America.
Posts: 3,411
Feedback: 7 / 100%

here ya go...

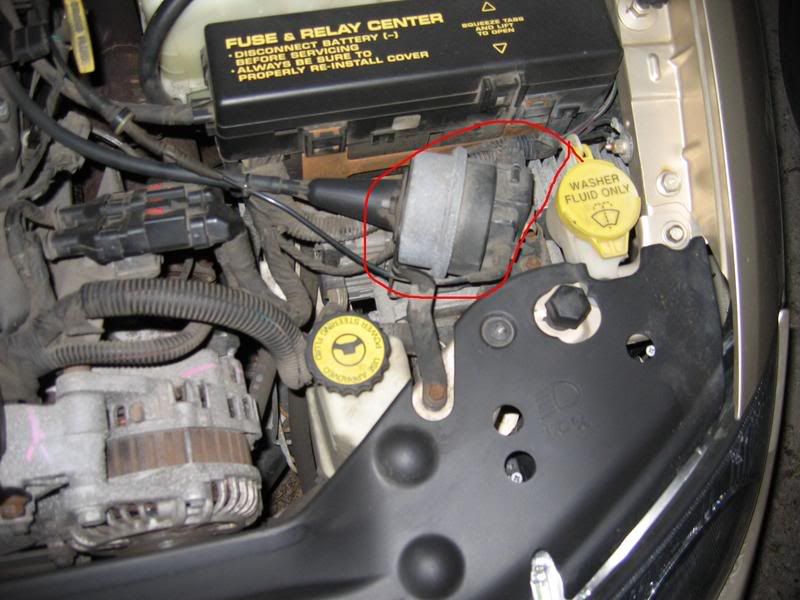

the fist picture is the CC thingie.

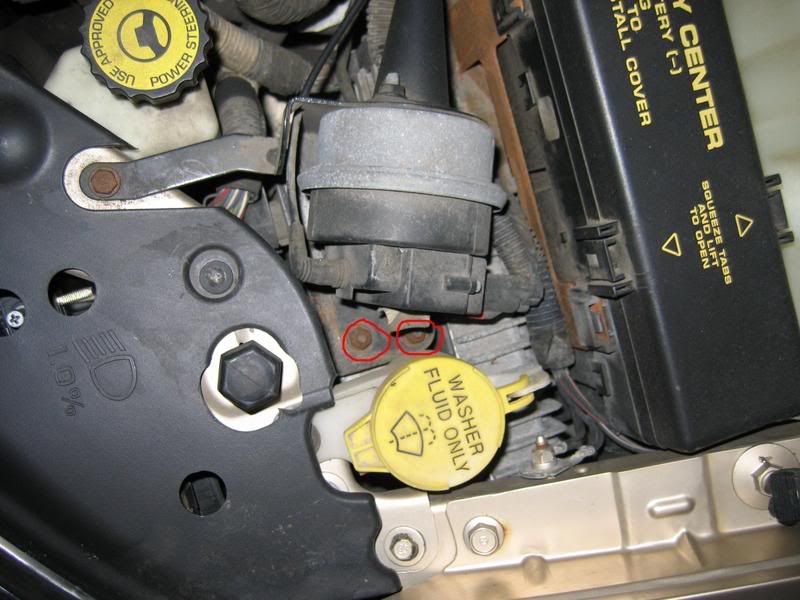

those two bolts are connected to the TCM, so that is the TCM. (on my 99 300m) there is a larger computer near there but that is not the TCM. the TCM is the one that the CC thing connects to.
I beata firebird ina ES is offline
post #8 of 8 (permalink) Old 05-07-2007, 03:06 AM Thread Starter
Intrepid Pro

freezingbelow's Avatar

Join Date: Feb 2007
Location: Tyngsboro Mass
Posts: 2,654
Feedback: 13 / 100%

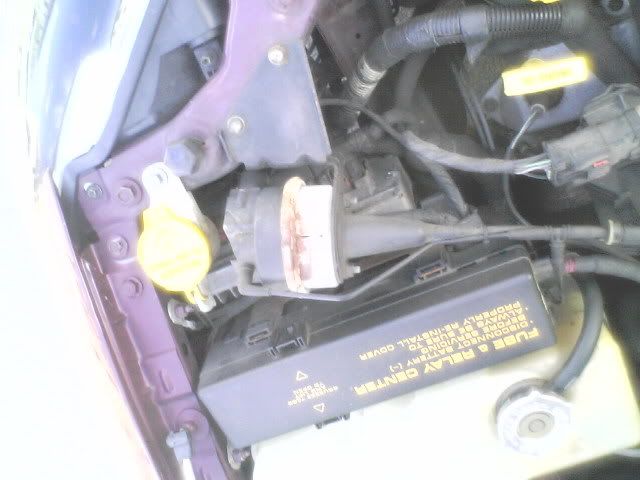

Thats what I thought it was, But mine slightly differint I dont have that black plasic cover and the cc thing is bolted to the radiator cross member. I looked up the part i pulled in the pic i posted and i believe its just the computer as you said but i dont thinkk there was anything else under the cc unit. Ill take another look but im not sure, hers a pic of mine.
