Need to change left cam sprocket, any cheats?

We had a family friend swap out the blown 2001 3.5 that is in our 2001 300m with a 2004 3.5. He did everything but swap out the left cam sprocket and the car is not starting up.

I'm assuming that is why its not starting up. Anyway, is there any easy cheat way to change the sprocket without major major work?
bobo is offline
Sponsored Links
Advertisement

post #2 of 9 (permalink) Old 07-26-2010, 11:06 PM
NEVER NEUTRAL

trepnician's Avatar

Join Date: Oct 2009
Location: Delaware
Posts: 6,638
Feedback: 1 / 100%

any codes?
trepnician is offline
post #3 of 9 (permalink) Old 07-26-2010, 11:34 PM
Intrepid Pro

Join Date: May 2008
Posts: 8,218
Feedback: 2 / 100%

Is it turning over?
crypt keeper is offline
post #4 of 9 (permalink) Old 07-27-2010, 12:09 AM Thread Starter
Intrepid Modder

bobo's Avatar

Join Date: Jun 2003
Location: Spokane, WA
Posts: 360
Feedback: 0 / 0%

It turns over, not sure about codes. He said he got spark/fuel, just no start up.

Just to clarify: he put a 2004 engine in place of my 2001 but did not change the left cam, sprocket for the one out of my 2001.
bobo is offline
post #5 of 9 (permalink) Old 07-27-2010, 12:13 AM
Intrepid Pro

sc.intrepid's Avatar

Join Date: Aug 2004
Location: Charleston, SC
Posts: 4,600
Feedback: 5 / 100%

Yes, the cam sprockets are different. That is what is keeping your engine from running properly. You will need the driver side cam sprocket from your old motor installed on your new motor.

As you implicate, the FSM has dial indicators, special cam locking tools, remove a bunch of junk, etc, etc

Swapping cam sprockets is such a rarity that I haven't seen any tricks like we have for replacing the timing belt.

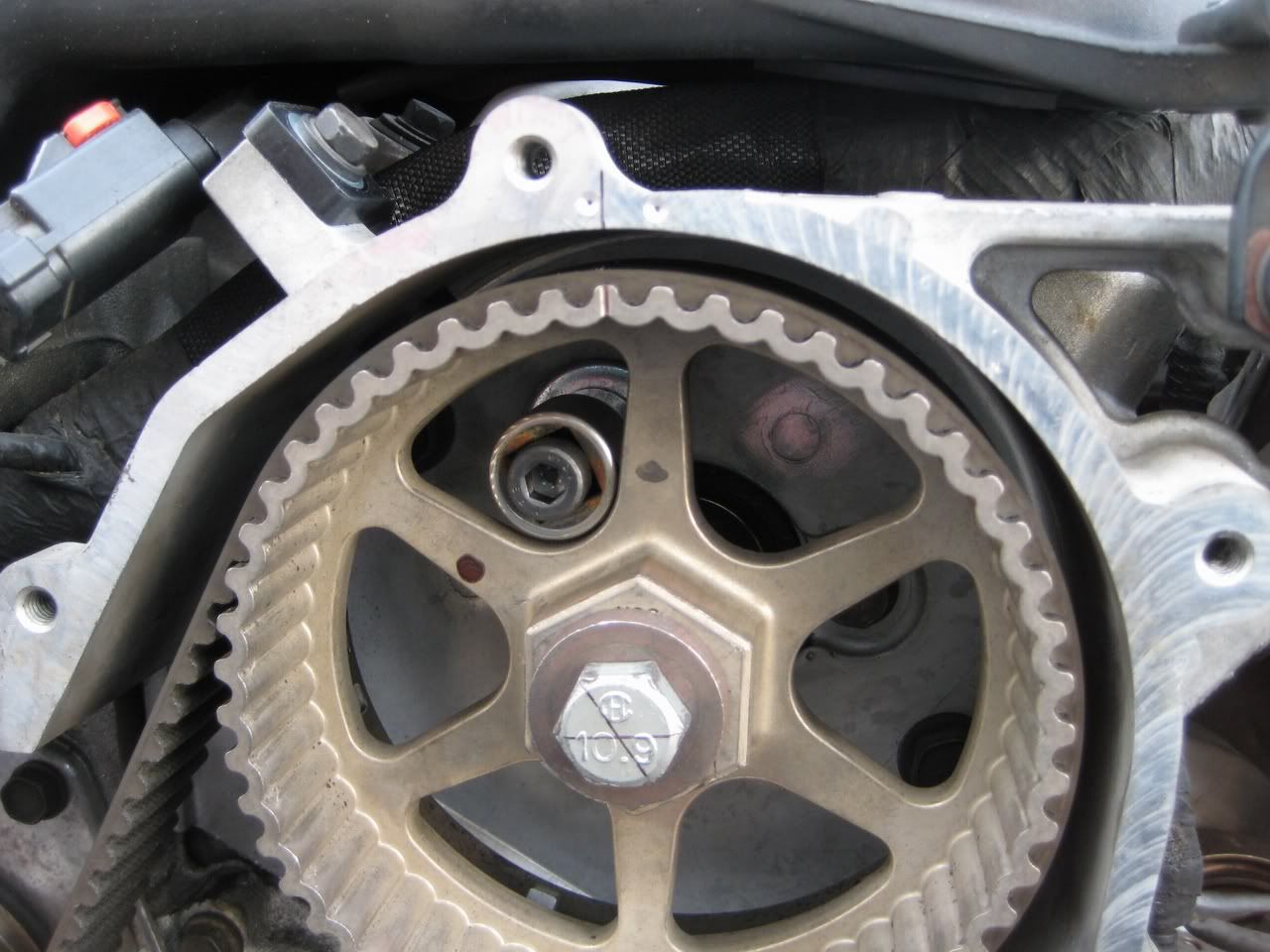

I would guess that if this timing mark (notch) on the sprocket represents the same "thing" on all driver side cam sprockets, then you might devise a method to shortcut all the hassle in the fsm.
Maybe if you could lock the driver cam down somehow so no movement is possible, then you could simply make a very accurate mark of where the 04 cam sprocket is at(like in the picture) and then swap in your older one. Line up the old sprocket to the mark and then tighten a brand new cam sprocket bolt. I could only envision using a the dealer cam lock tool that fits on the back of the cylinder head. To even try this shortcut, you would have to do all the procedures used for removing/replacing the timing belt.

Try Mozilla Firefox with adblock plus for a more ad-free experience
sc.intrepid is offline
post #6 of 9 (permalink) Old 07-27-2010, 07:29 AM
Woober Goobers!


Ronbo's Avatar

Join Date: Mar 2005
Location: Tiny Pebble, AR
Posts: 40,305
Feedback: 44 / 100%

Don't you have to swap the flex plate(flywheel) also for the conversion with the different years involved?
Ronbo is online now
post #7 of 9 (permalink) Old 07-27-2010, 08:44 AM
Intrepid Pro

Join Date: Feb 2002
Location: Virginia, U.S.
Posts: 14,279
Feedback: 4 / 83%

Quote:
Originally Posted by Ronbo View Post
Don't you have to swap the flex plate(flywheel) also for the conversion with the different years involved?
You beat me to it.
peva is offline
post #8 of 9 (permalink) Old 07-27-2010, 11:55 AM
I hit shit with sticks!



Daytrepper's Avatar

Join Date: Jan 2005
Location: Zebulon, NC
Posts: 34,292
Feedback: 20 / 100%

Garage
Quote:
Originally Posted by Ronbo View Post
Don't you have to swap the flex plate(flywheel) also for the conversion with the different years involved?
Yep, along with all this stuff:

How To: Convert a 2002-2004 3.5HO Engine to Work in a 1998-2001 and vice versa

They will usually start and run if you unplug the cam sensor...if you forget to change the sprocket that is...but wont run good, and not over 2500 rpm...they will not start at all if the flywheel is not changed.
Daytrepper is offline
post #9 of 9 (permalink) Old 07-28-2010, 03:57 PM Thread Starter
Intrepid Modder

bobo's Avatar

Join Date: Jun 2003
Location: Spokane, WA
Posts: 360
Feedback: 0 / 0%

Well everything else was swapped over except for the cam sprocket. Well chalk it up to a learning experience.
