Cool Another 4.0 stroker is born!

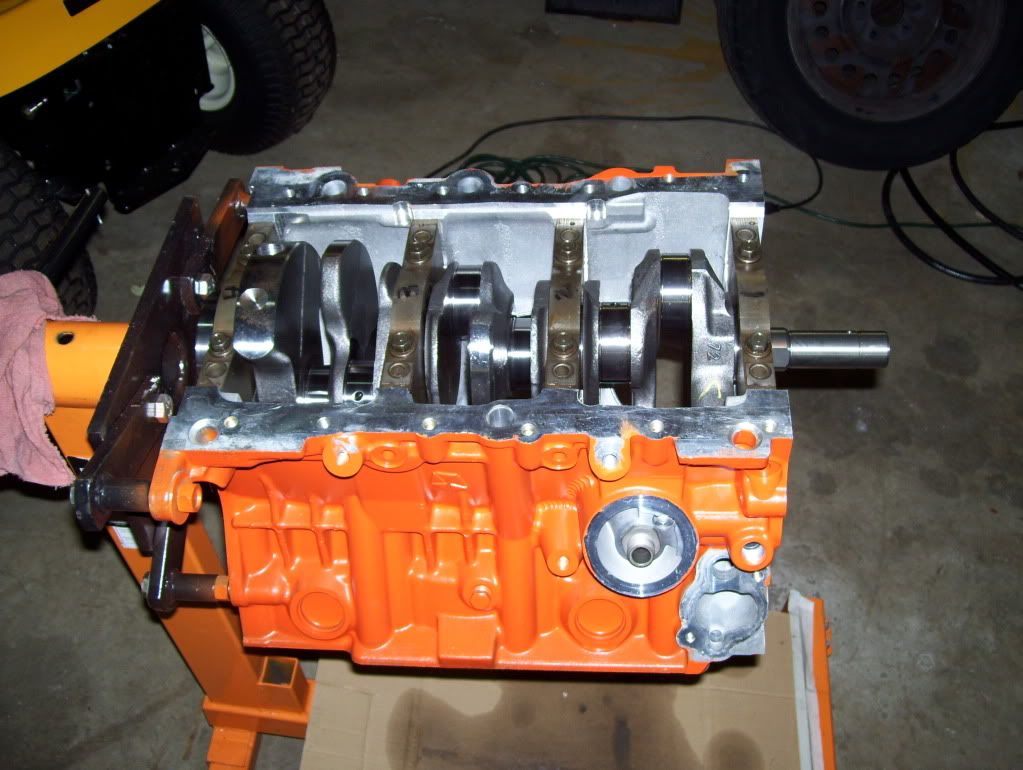

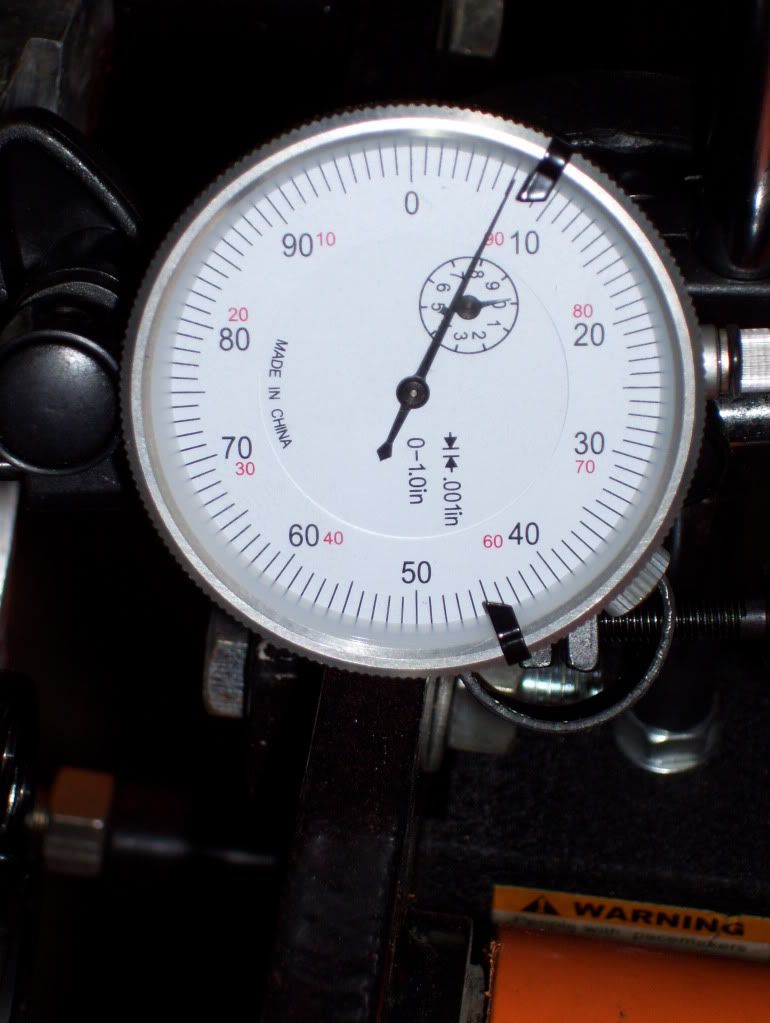

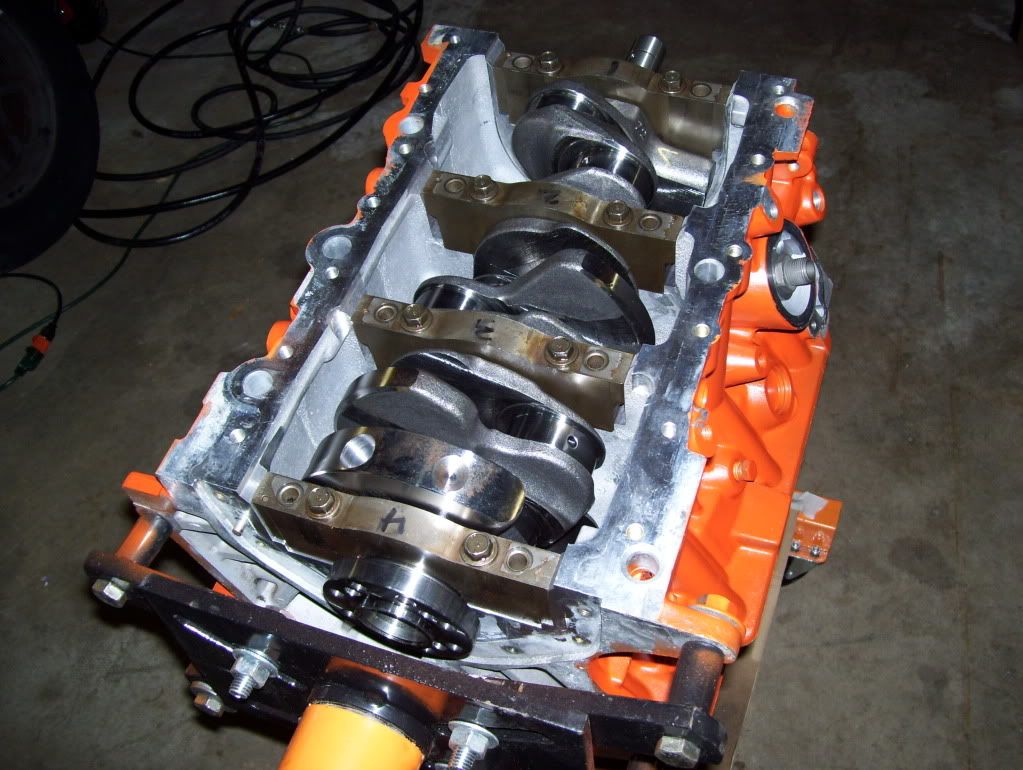

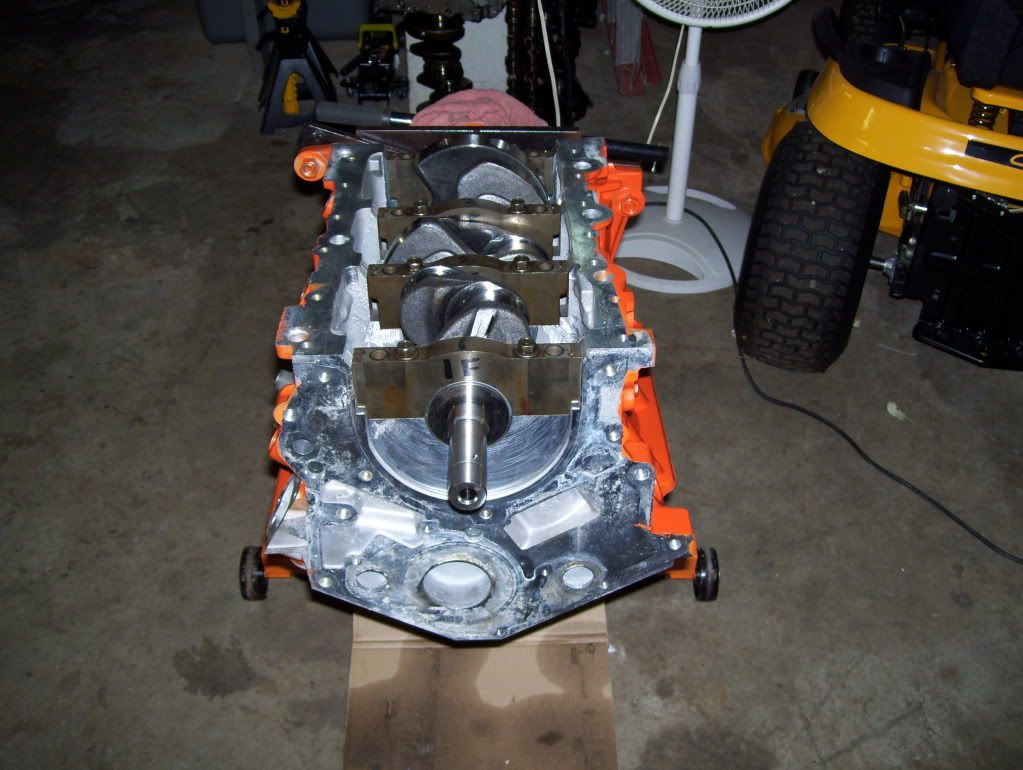

Today I picked up my newly machined 4.0 crank from the machine shop after having the mains turned. Shot a couple quick pics of the bottom end going together. Ended up with .008" end play which I was happy with, and no tight spots when spinning the crank. Using mock up bearings to test fit everything then assembling with new sealed power bearings for the final bolt down. Not quite as pretty yet as Dmondeac's but I'm a few months behind his build. Needless to say I'm a happy man!






"It's finally built the way Dodge should have built it."

dodgebob68 is offline
Sponsored Links
Advertisement

post #2 of 588 (permalink) Old 01-19-2011, 09:06 PM
Intrepid Pro


dmondeac's Avatar

Join Date: Jun 2004
Location: Midlothian, VA
Posts: 2,576
Feedback: 15 / 100%

Nice!
dmondeac is offline
post #3 of 588 (permalink) Old 01-19-2011, 09:09 PM
That rhythm is INFECTIOUS.



MrBigE's Avatar

Join Date: Aug 2001
Location: Pickerington OH
Posts: 18,564
Feedback: 1 / 100%

Cool! Gotta subscribe to this one too...

MrBigE is offline
post #4 of 588 (permalink) Old 01-19-2011, 09:21 PM
NEVER NEUTRAL

trepnician's Avatar

Join Date: Oct 2009
Location: Delaware
Posts: 6,638
Feedback: 1 / 100%

sweet!!
trepnician is offline
post #5 of 588 (permalink) Old 01-19-2011, 09:28 PM
Intrepid Pro

Scooter-Man's Avatar

Join Date: Dec 2006
Location: Va Beach, VA
Posts: 13,003
Feedback: 6 / 100%

That's sweet! I'll watch this build also. Only if Mother Mopar release the engine coding.

Late!
Scooter-Man is offline
post #6 of 588 (permalink) Old 01-19-2011, 09:32 PM
yippee ki yay


TrepCruzin's Avatar

Join Date: Dec 2007
Location: Fort Worth, TX
Posts: 5,810
Feedback: 2 / 100%

purdy...i'll be watching.....
TrepCruzin is offline
post #7 of 588 (permalink) Old 01-19-2011, 09:50 PM
Intrepid Modder

stratastic's Avatar

Join Date: Jan 2007
Location: sycamore, IL
Posts: 758
Feedback: 0 / 0%

ill be watching this as well
stratastic is offline
post #8 of 588 (permalink) Old 01-19-2011, 10:04 PM
Intrepid Pro

gearhead291's Avatar

Join Date: Apr 2008
Location: georgia
Posts: 5,642
Feedback: 2 / 75%

nice !!!
gearhead291 is offline
post #9 of 588 (permalink) Old 01-20-2011, 12:41 AM
Intrepid Pro


paintballdude05's Avatar

Join Date: May 2007
Location: Sudbury, Ontario
Posts: 13,162
Feedback: 13 / 93%

Quote:
Originally Posted by MrBigE View Post
Cool! Gotta subscribe to this one too...

What he said!
paintballdude05 is offline
post #10 of 588 (permalink) Old 01-20-2011, 12:44 AM
Intrepid Pro

Squilliam's Avatar

Join Date: Nov 2008
Location: Greater Pittsburgh, PA
Posts: 15,038
Feedback: 2 / 100%

Oooooooooo, purdy!
Squilliam is offline
post #11 of 588 (permalink) Old 01-20-2011, 12:57 AM
Intrepid Pro

PredatoryTrep's Avatar

Join Date: Apr 2010
Location: Atlanta
Posts: 2,048
Feedback: 1 / 100%

holy geez....two 4.0L storkers?!

And what Scooter said....man, if we had access to the PCM the things we could make this car do....and a good tranny that could handle all the power. lol
PredatoryTrep is offline
post #12 of 588 (permalink) Old 01-20-2011, 02:03 AM
Intrepid Pro

sc.intrepid's Avatar

Join Date: Aug 2004
Location: Charleston, SC
Posts: 4,600
Feedback: 5 / 100%

I have a question about case depth/hardness on the journals.
My company makes Turbos. For durability purposes, on the turbine wheel shaft we harden the diameter so that after final grinding we have a specific hardness and case depth.

By removing so much material from the mains, are you concerned you may have ground off the harness band from the original manufacturing process? By chance did you have the hardness tested before or after the machine shop work ?
sc.intrepid is offline
post #13 of 588 (permalink) Old 01-20-2011, 07:45 AM
Farticcus of Plenticcus

shadowvox6's Avatar

Join Date: Sep 2003
Location: 39.199138,-84.669778
Posts: 17,030
Feedback: 18 / 100%

Awesome....
shadowvox6 is offline
post #14 of 588 (permalink) Old 01-20-2011, 07:46 AM Thread Starter
Intrepid Pro

dodgebob68's Avatar

Join Date: Feb 2010
Location: Panama City, FL
Posts: 1,235
Feedback: 0 / 0%

Quote:
Originally Posted by sc.intrepid View Post
I have a question about case depth/hardness on the journals.
My company makes Turbos. For durability purposes, on the turbine wheel shaft we harden the diameter so that after final grinding we have a specific hardness and case depth.

By removing so much material from the mains, are you concerned you may have ground off the harness band from the original manufacturing process? By chance did you have the hardness tested before or after the machine shop work ?
Good question. I did not. It is my understanding that forged steel cranks are not hardened on any of the journals as the original material is supportive enough. I think in the old days they did harden cast craks since the journals were more malleable, but metallurgy has kept pace with technology and some of the new alloys are far superior to what we had 20 or 30 years ago. In turbos you are dealing with much higher heat, much higher rpm's than a crankshaft sees, so I could understand hardening it. If I'm wrong, I'll be the first to post pics of spun bearings or hacked up mains.

"It's finally built the way Dodge should have built it."

dodgebob68 is offline
post #15 of 588 (permalink) Old 01-20-2011, 07:53 AM Thread Starter
Intrepid Pro

dodgebob68's Avatar

Join Date: Feb 2010
Location: Panama City, FL
Posts: 1,235
Feedback: 0 / 0%

Quote:
Originally Posted by PredatoryTrep View Post
holy geez....two 4.0L storkers?!

And what Scooter said....man, if we had access to the PCM the things we could make this car do....and a good tranny that could handle all the power. lol
I've been talking to a guy from Vitesse Racing who is a distributor of Perfect Power products. They build a piggyback unit that I'm told will work with our PCM's to modify the inputs so that you can vary fuel and spark and other sensors. The only review of one so far is on a 3.3 equipped minivan (which they claimed worked well) but if I give it a try I'll be posting the results. The piggyback unit has only 6 wires to splice to the pcm harness and is variable/adjustable so you can set up and monitor the inputs through a laptop connection to the DRB.

"It's finally built the way Dodge should have built it."
