Otis overhead display for my car?

Hello people i have a few questions. I have a 1999 dodge intrepid base model 2.7. I was reading DJPILL description on the overhead computers. Will this work on my intrepid? I found one at a local salvage yard that i can get cheap. Its in a 2000 chrysler concorde. I also noticed the mirror in that car had a wire going from it the the overhead computer. If it will work what else should i get from the car other than the display itself? Im pretty sure its the OTIS model she is saying that will work for my car. Thanks My car has no overhead computer at all right now.


Last edited by kcarr65; 04-01-2009 at 09:41 AM. Reason: .
kcarr65 is offline
Sponsored Links
Advertisement

post #2 of 25 (permalink) Old 04-01-2009, 09:49 AM
Intrepid Pro

Jdnet's Avatar

Join Date: Feb 2008
Location: Whitewater, WI
Posts: 1,245
Feedback: 4 / 100%

you will need to get the harness from the donor car. The harness connects to the lights in the rear handles, the lights in the over head console, the otis and the rear view mirror. You may as well grab the mirror too so you will have an auto-dim mirror.
Jdnet is offline
post #3 of 25 (permalink) Old 04-01-2009, 09:55 AM Thread Starter

Join Date: Feb 2009
Posts: 219
Feedback: 0 / 0%

What do you mean lights in the rear handles ? Sorry im a little confused.

Last edited by kcarr65; 04-01-2009 at 09:56 AM. Reason: ,
kcarr65 is offline
Sponsored Links
Advertisement

post #4 of 25 (permalink) Old 04-01-2009, 09:57 AM
Intrepid Pro

Jdnet's Avatar

Join Date: Feb 2008
Location: Whitewater, WI
Posts: 1,245
Feedback: 4 / 100%

the oh shit handles/pull handles above the rear door have lights in em.
Jdnet is offline
post #5 of 25 (permalink) Old 04-01-2009, 10:05 AM Thread Starter

Join Date: Feb 2009
Posts: 219
Feedback: 0 / 0%

So the harness i need runs on top of the headliner back to the rear handles? Do i have to get any sensors or anything like that from the car since my car has no overhead computer now? My rear handles have no light in them if thats what you mean.

Last edited by kcarr65; 04-01-2009 at 10:06 AM. Reason: .
kcarr65 is offline
post #6 of 25 (permalink) Old 04-01-2009, 10:15 AM
Intrepid Pro

Jdnet's Avatar

Join Date: Feb 2008
Location: Whitewater, WI
Posts: 1,245
Feedback: 4 / 100%

Quote:
Originally Posted by kcarr65 View Post
So the harness i need runs on top of the headliner back to the rear handles? Do i have to get any sensors or anything like that from the car since my car has no overhead computer now? My rear handles have no light in them if thats what you mean.
no sensors. Just grab the harness, overhead console and the autodim rear view mirror. you have to take the headliner out and the old harness out and put the new one in, then connect it to the junction/fuse box on the left side of the dash. If you dont want to take out the headliner you can always splice and grab the three connectors in the harness (1 pci at the junction box, one at the otis and one at the mirror and build your own harness. Then you can splice the wires of the existing harness (yellow and pink and connect it to the new one you made so your lighted handles and the rest of the stuff will work. That's what I did and works fine, but I will be taking out my headliner in the summer to install the proper harness.
Jdnet is offline
post #7 of 25 (permalink) Old 04-01-2009, 10:24 AM Thread Starter

Join Date: Feb 2009
Posts: 219
Feedback: 0 / 0%

Maybe a dumb question for ya. How does the outside temp funtion work since my car has no sensor now?
kcarr65 is offline
post #8 of 25 (permalink) Old 04-01-2009, 10:27 AM Thread Starter

Join Date: Feb 2009
Posts: 219
Feedback: 0 / 0%

This wil run off my computer i have now. I dont have to change the computer?
kcarr65 is offline
post #9 of 25 (permalink) Old 04-01-2009, 10:28 AM
Intrepid Pro

Jdnet's Avatar

Join Date: Feb 2008
Location: Whitewater, WI
Posts: 1,245
Feedback: 4 / 100%

Quote:
Originally Posted by kcarr65 View Post
Maybe a dumb question for ya. How does the outside temp funtion work since my car has no sensor now?
all second gens have a sensor equipped in the front of the car if im not mistaken.
Jdnet is offline
post #10 of 25 (permalink) Old 04-01-2009, 10:31 AM
Intrepid Pro

Jdnet's Avatar

Join Date: Feb 2008
Location: Whitewater, WI
Posts: 1,245
Feedback: 4 / 100%

Quote:
Originally Posted by kcarr65 View Post
This wil run off my computer i have now. I dont have to change the computer?
nope it will plus right into the junction box. If you kook ad the left side of the dash you will see a panel with a handle. You can take it you and you will see the junction box. Look inside it and you will see a connector with a yellow/pink wire comming in from under the a-pillr. You just need to unplug it and plug your new harness there. The new harness will have more wires than the old one.
Jdnet is offline
post #11 of 25 (permalink) Old 04-01-2009, 10:36 AM Thread Starter

Join Date: Feb 2009
Posts: 219
Feedback: 0 / 0%

ok thanks im going to the salvage yard now
kcarr65 is offline
post #12 of 25 (permalink) Old 04-01-2009, 10:38 AM
Intrepid Pro

Jdnet's Avatar

Join Date: Feb 2008
Location: Whitewater, WI
Posts: 1,245
Feedback: 4 / 100%

Quote:
Originally Posted by kcarr65 View Post
ok thanks im going to the salvage yard now
have fun! oh dont forget to take a philips and torx screw driver and also something to cut the wires with (a scissor will do).
Jdnet is offline
post #13 of 25 (permalink) Old 04-01-2009, 02:01 PM Thread Starter

Join Date: Feb 2009
Posts: 219
Feedback: 0 / 0%

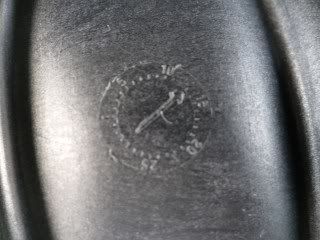

Ok this is what i got from the salvage yard. I hope i got everything i needed. The last pic is what i paid for everything. You cant see it very well but i paid 6.38.




kcarr65 is offline
post #14 of 25 (permalink) Old 04-01-2009, 02:10 PM
Intrepid Pro

Jdnet's Avatar

Join Date: Feb 2008
Location: Whitewater, WI
Posts: 1,245
Feedback: 4 / 100%

wow thats freaking cheap
Jdnet is offline
post #15 of 25 (permalink) Old 04-01-2009, 02:11 PM
Intrepid Pro

Jdnet's Avatar

Join Date: Feb 2008
Location: Whitewater, WI
Posts: 1,245
Feedback: 4 / 100%

well get outta here and start hooking it up! lol
