o2 sesnor

How can i get the o2 sensor out have the tool but it's really stuck in there can i use a torch and what kind of torch to remove it.
mattharp73 is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 06-14-2009, 10:37 AM
Intrepid Pro

TCPMeta's Avatar

Join Date: Aug 2006
Location: Jacksonville, FL
Posts: 2,935
Feedback: 0 / 0%

Hit it with some WD40 and let it sit for a few minutes. If all fails use a wrench and a rubber mallet to break free the mighty grip the sensor has taken on.
TCPMeta is offline
post #3 of 10 (permalink) Old 06-14-2009, 10:38 AM
Intrepid Pro

MegaTrep's Avatar

Join Date: May 2007
Location: M'waukee, WI
Posts: 2,792
Feedback: 2 / 100%

Ugh, what a PITA.

PB Blaster should work. Spray the piss out of it. If its really bad, spray it everyday for a week or so. This is really gonna be good if you drive it daily as well.

Then, you can use a torch to get it out. A propane torch should get the job done. If is really bad and you have access to one, an Oxyacetylene torch will work, but a bit overkill lol. Also, when you try and get it out, do it when the engine hasnt been driven for a while. (like a day or so). Lastly, use a big ass breaker bar to get better leverage. Hopefully the one you are trying to get out has enough room around it to use a nice sized one.

Quote:
Originally Posted by CaptainMorgan View Post
I know, as soon as I figured that out I said dammit, fukin Kyle was right.
MegaTrep is offline
Sponsored Links
Advertisement

post #4 of 10 (permalink) Old 06-14-2009, 03:30 PM
Intrepid Pro

Join Date: Jul 2006
Location: Salvisa, KY
Posts: 1,064
Feedback: 0 / 0%

On my 97 I ended up using a Oxyacetylene torch, even then, it was incredibly hard to get out using a 36 inch breaker bar and a sledge hammer... Not fun trying to fit all that under the car either....
Charles_Scott is offline
post #5 of 10 (permalink) Old 06-14-2009, 06:47 PM

Join Date: Jun 2009
Posts: 243
Feedback: 0 / 0%

i messed around with mine today,, surprisingly they came out without any effort 7/8 wrench all i needed
95 Intrepid Evil's is offline
post #6 of 10 (permalink) Old 06-14-2009, 07:18 PM
Intrepid Pro

MegaTrep's Avatar

Join Date: May 2007
Location: M'waukee, WI
Posts: 2,792
Feedback: 2 / 100%

Could someone post a pic of where they are on a 1G? I know on my Trep, its impossible to fit a 36" breaker bar anywhere in the engine bay, let alone on top of a bolt and be able to move it.
MegaTrep is offline
post #7 of 10 (permalink) Old 06-14-2009, 07:28 PM
Intrepid Pro

Xpid's Avatar

Join Date: Apr 2006
Location: Springfield,Missorui
Posts: 1,806
Feedback: 1 / 100%

Their on the manfiold, for the 3.5L it's a bit of a pita, but not so much since our manfiolds are out in the open. Passenger side anyways, drivers side is a BITCH!

You could also getting the exhaust nice and hot then shooting some wd-40 and trying it, might help might not.

When i took mine out i had me and my dad both pulling on the same wrench it broke free but my arm caught the clamp for the top radiator hose, it was pleasant!

Of course the intake is in the way but a couple clamps and that is out of the way and the coil pack isn't there either but you get the idea...




Concorde R/T?

Last edited by Xpid; 06-14-2009 at 07:42 PM.
Xpid is offline
post #8 of 10 (permalink) Old 06-14-2009, 08:13 PM

Join Date: Jun 2009
Posts: 243
Feedback: 0 / 0%

On my gen 1 they are behind the exhaust manifold plugs are towards the block i might be able to get you pics tomorrow on my 95 3.3
95 Intrepid Evil's is offline
post #9 of 10 (permalink) Old 06-14-2009, 11:01 PM
Intrepid Pro

Join Date: Jul 2006
Location: Salvisa, KY
Posts: 1,064
Feedback: 0 / 0%

There are two on each side of the car, one under each exhaust manifold beside the engine block, feel up behind that, it is easy to find em, then two under the car, after the precats sitting on top, it isn't hard to fit a 36'' breaker bar up there if it has a swivel end on it. But in the engine bay, yes it is nearly impossible to fit one that big, but you can do it from the bottom, you just won't get a large turn radius with it.

This is on the 3.3, I am unsure of how hard it would be to get to the ones on a 3.5....
Charles_Scott is offline
post #10 of 10 (permalink) Old 06-15-2009, 09:51 AM

Join Date: Jun 2009
Posts: 243
Feedback: 0 / 0%

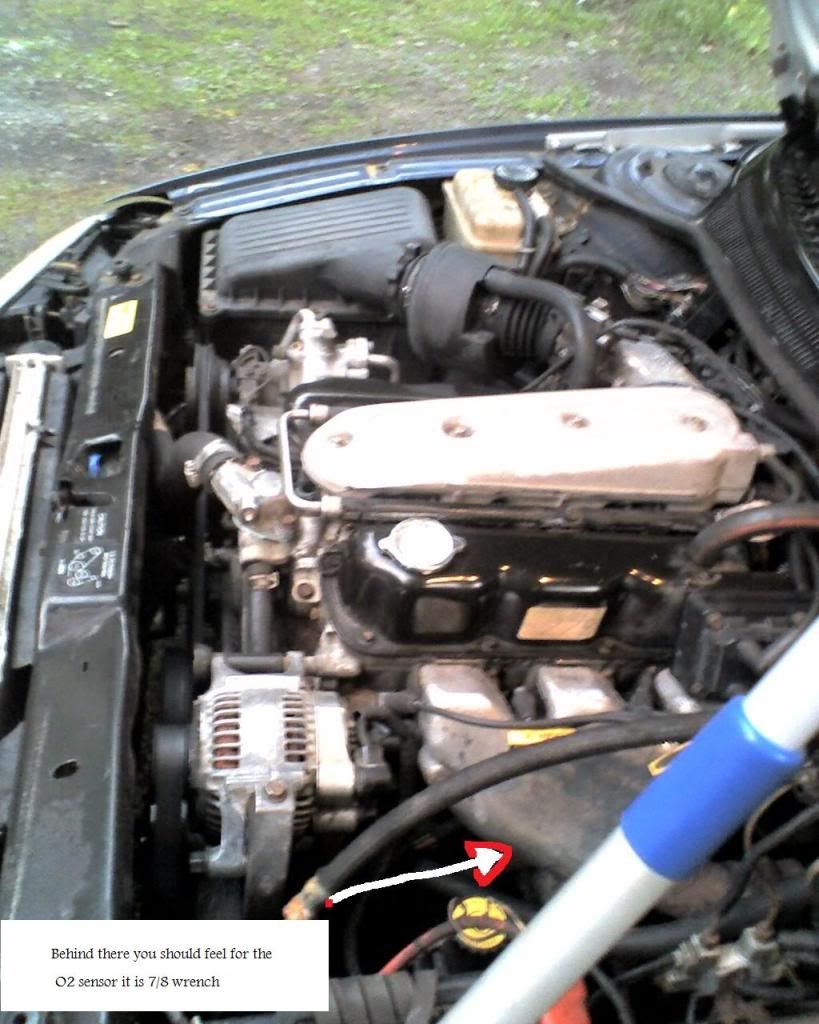

best i could do on short notice,,lol here is a pic of where to look on the 3.3
95 Intrepid Evil's is offline
