oops forgotten pieces

newbie here. just finished replacing motor mounts, water pump, thermostat, head gasket, exhaust mani gasket.
for the life of me i cant remember where these part goes

toebertgg is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 12-16-2010, 04:12 PM
Intrepid Pro

Scooter-Man's Avatar

Join Date: Dec 2006
Location: Va Beach, VA
Posts: 14,499
Feedback: 6 / 100%

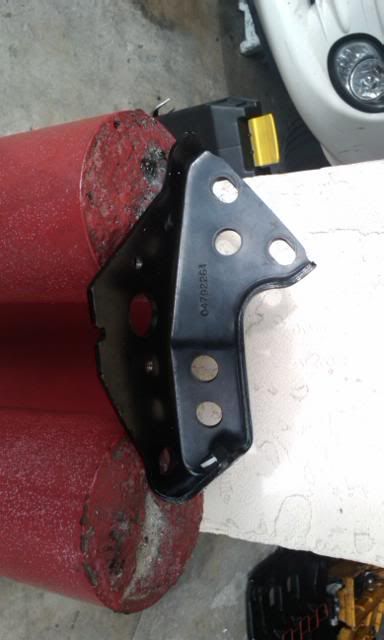

I'm not certain where that bracket goes. List the year car and motor size to help narrow down it.
Part number says 04792261

Late!
Scooter-Man is offline
post #3 of 12 (permalink) Old 12-16-2010, 04:34 PM Thread Starter
Intrepid Newbie

Join Date: Dec 2010
Location: san diego
Posts: 9
Feedback: 0 / 0%

its 2003 dodge intrepid sxt 3.5l sfi ho

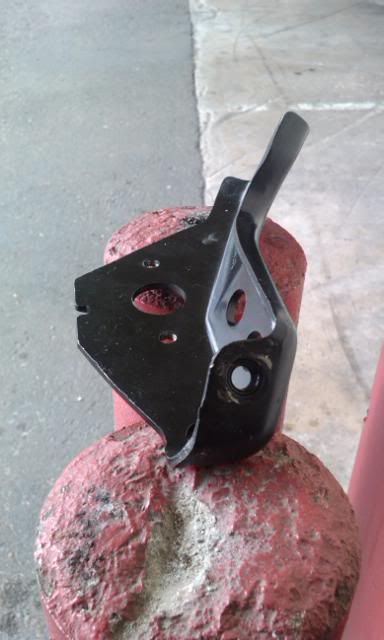

different angle

toebertgg is offline
Sponsored Links
Advertisement

post #4 of 12 (permalink) Old 12-16-2010, 04:36 PM Thread Starter
Intrepid Newbie

Join Date: Dec 2010
Location: san diego
Posts: 9
Feedback: 0 / 0%

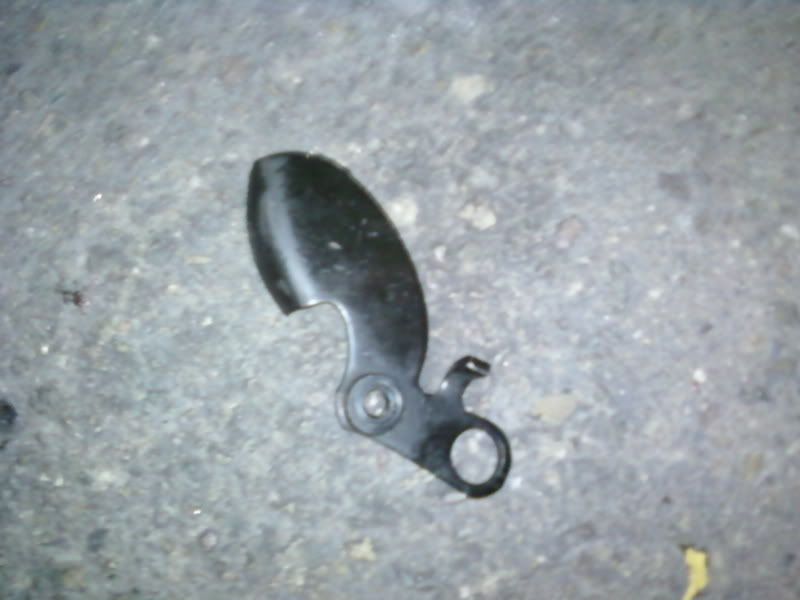

o here is another part i cant figure out.

i knw its a belt guide but 4got where

toebertgg is offline
post #5 of 12 (permalink) Old 12-16-2010, 04:37 PM
Intrepid Pro

Scooter-Man's Avatar

Join Date: Dec 2006
Location: Va Beach, VA
Posts: 14,499
Feedback: 6 / 100%

Dang, I did a motor swap this summer and don't reconize it. Someone much more informed will chime in, looks like the ALT or PS or A/C Compressor bracket?? maybe, maybe not...
Scooter-Man is offline
post #6 of 12 (permalink) Old 12-16-2010, 04:38 PM Thread Starter
Intrepid Newbie

Join Date: Dec 2010
Location: san diego
Posts: 9
Feedback: 0 / 0%

srry for additional post but im using my phn to upload n post

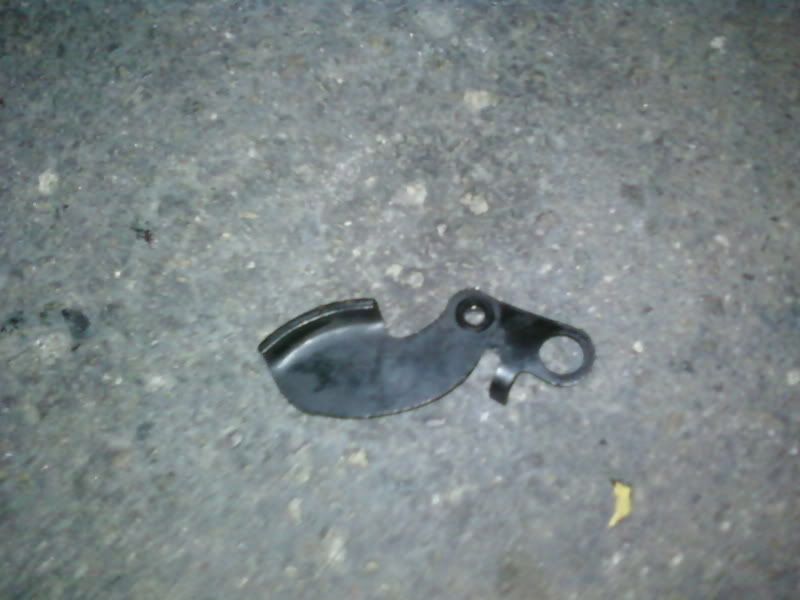

another angle of belt thingy

toebertgg is offline
post #7 of 12 (permalink) Old 12-16-2010, 04:52 PM
Intrepid Pro

Scooter-Man's Avatar

Join Date: Dec 2006
Location: Va Beach, VA
Posts: 14,499
Feedback: 6 / 100%

That smaller bracket is the motor lift that attaches in front of the A/C compressor, front side of the motor. Acts as a belt guard also.
Scooter-Man is offline
post #8 of 12 (permalink) Old 12-16-2010, 05:16 PM Thread Starter
Intrepid Newbie

Join Date: Dec 2010
Location: san diego
Posts: 9
Feedback: 0 / 0%

we cant seem to find the right bolts it goes on.
toebertgg is offline
post #9 of 12 (permalink) Old 12-16-2010, 05:31 PM
get off my lawn


DrDodge's Avatar

Join Date: Jan 2006
Location: Smyrna , Tn
Posts: 15,502
Feedback: 6 / 100%

Quote:
Originally Posted by toebertgg View Post
o here is another part i cant figure out.

i knw its a belt guide but 4got where

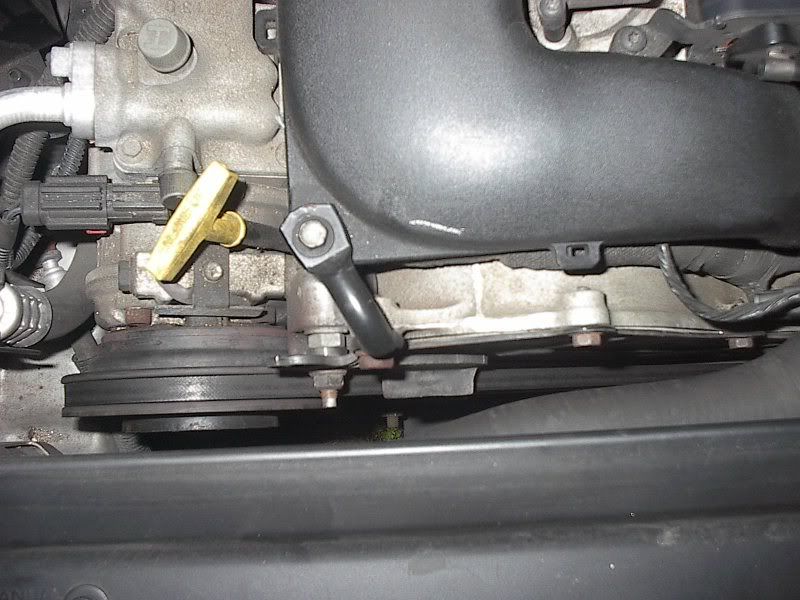

heres a pic of where the belt guide goes,,


the other? i dont have a clue
DrDodge is offline
post #10 of 12 (permalink) Old 12-16-2010, 06:04 PM
I hit shit with sticks!



Daytrepper's Avatar

Join Date: Jan 2005
Location: Zebulon, NC
Posts: 37,098
Feedback: 21 / 100%

Garage
Quote:
Originally Posted by toebertgg View Post
its 2003 dodge intrepid sxt 3.5l sfi ho

different angle

Thats your rear alternator support bracket. The upper alternator mounting bolt threads into the large threaded hole on the top in your pic, then there are 2 bolts that secure the other end to the side of the cylinder head. Also, your plastic mounting bracket for your main engine harness attaches to it on the two bolt holes in the flat area.

Quote:
Originally Posted by toebertgg View Post
o here is another part i cant figure out.

i knw its a belt guide but 4got where

Yep, is the belt guide, goes on the stud upper right of the a/c compressor.
Daytrepper is offline
post #11 of 12 (permalink) Old 12-16-2010, 06:05 PM Thread Starter
Intrepid Newbie

Join Date: Dec 2010
Location: san diego
Posts: 9
Feedback: 0 / 0%

Quote:
Originally Posted by DrDodge View Post
heres a pic of where the belt guide goes,,


the other? i dont have a clue
sweet danks fr da help. 1 down one to go
toebertgg is offline
post #12 of 12 (permalink) Old 12-16-2010, 06:46 PM Thread Starter
Intrepid Newbie

Join Date: Dec 2010
Location: san diego
Posts: 9
Feedback: 0 / 0%

Quote:
Originally Posted by Daytrepper View Post
Thats your rear alternator support bracket. The upper alternator mounting bolt threads into the large threaded hole on the top in your pic, then there are 2 bolts that secure the other end to the side of the cylinder head. Also, your plastic mounting bracket for your main engine harness attaches to it on the two bolt holes in the flat area.



Yep, is the belt guide, goes on the stud upper right of the a/c compressor.
do hav a pic of it
