DIY shortened antenna

Pretty easy to do.

Stuck with a 14" height (stock is around 32" tall).

Very easy asthetic mod for those who live in the city (no reception lost for me).

Basically the hardest part is removing the ball, its not glued in just pressed on.

I used a pair of vice grips on the rod that was going to be cut, a crow bar to hold the ball (the cradle), and a hammer to hit the vise grips until the ball pops off.

Then I used a dremel to cut off the excess length and tapered the tip so I could put on the ball and hammer it on.

Came out pretty well, and did the same to my mustang's antenna too (they sell the same 14" length for $20-30!).

Don't know if anyone actually woud care to do the same but I think the trep with an antenna at roof height looks pretty good.

I'l try to get a pic up but my phone camera sucks right now (case lens is all scratched up).
concordefreak is offline
Sponsored Links
Advertisement

post #2 of 9 (permalink) Old 11-05-2012, 09:13 PM
Intrepid Pro

Join Date: May 2008
Posts: 8,218
Feedback: 2 / 100%

I bought one on ebay that's about 8 inches long that looks just like the factory one for a few dollars and it still works fine even being that short.
crypt keeper is offline
post #3 of 9 (permalink) Old 11-05-2012, 09:32 PM Thread Starter
Intrepid Modder

concordefreak's Avatar

Join Date: Aug 2004
Location: Toronto Canada
Posts: 411
Feedback: 2 / 100%

I'm too impatient plus if I get tired of this I can always shorten it down to whatever size I want (and I needed a test subject before I ruined my mustang's antenna). For me to order stuff off ebay costs an arm for shipping because of being in Canada...



I'm also planning on adding an 02-04 mustang GT spoiler eventually. Don't like the stock surfboard. That or do a full custom spoiler out of fiberglass.

Last edited by concordefreak; 11-05-2012 at 09:36 PM.
concordefreak is offline
Sponsored Links
Advertisement

post #4 of 9 (permalink) Old 11-06-2012, 01:00 AM
1st Gen FTW - It's AutoMedic!


cdmccul's Avatar

Join Date: Jun 2008
Location: Garrison, ND
Posts: 15,449
Feedback: 18 / 100%

Interesting...
cdmccul is offline
post #5 of 9 (permalink) Old 11-06-2012, 03:55 AM
Intrepid Modder

Franqstar's Avatar

Join Date: Jan 2012
Location: Big Island Hawaii
Posts: 763
Feedback: 0 / 0%

Very interesting thinking about doing it to my car....looks good man


Sent from my iPhone using Autoguide.com App
Franqstar is offline
post #6 of 9 (permalink) Old 11-06-2012, 08:37 AM
tgs
Intrepid Pro

Join Date: Aug 2006
Location: Stuck in Indianapolis until the end of time
Posts: 1,905
Feedback: 3 / 100%

Or you could get rid of the antenna altogether:

https://www.dodgeintrepid.net/showthread.php?t=198482
tgs is offline
post #7 of 9 (permalink) Old 11-08-2012, 02:03 PM
Intrepid Pro

Join Date: Aug 2001
Location: CT
Posts: 11,278
Feedback: 10 / 100%

I did this on my last mustang and also my current mustang. Very easy to do and the best part is you can change it to whatever length you want in just a couple mins
JoeKD is offline
post #8 of 9 (permalink) Old 11-08-2012, 02:36 PM
Intrepid Pro

GTXKen's Avatar

Join Date: Feb 2005
Location: Lowell, IN
Posts: 1,925
Feedback: 2 / 100%

I did the one on my truck to match the cab height (1/4" over actually) so that I would know if I was pulling into a garage that was too low.
GTXKen is offline
post #9 of 9 (permalink) Old 12-03-2012, 04:55 PM
Intrepid Pro

Scooter-Man's Avatar

Join Date: Dec 2006
Location: Va Beach, VA
Posts: 14,530
Feedback: 6 / 100%

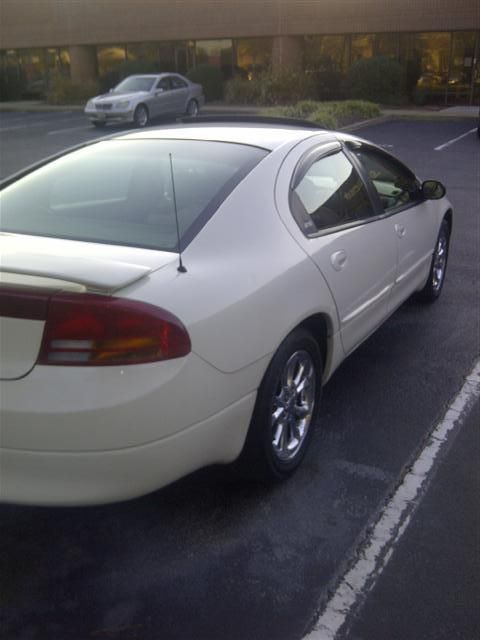

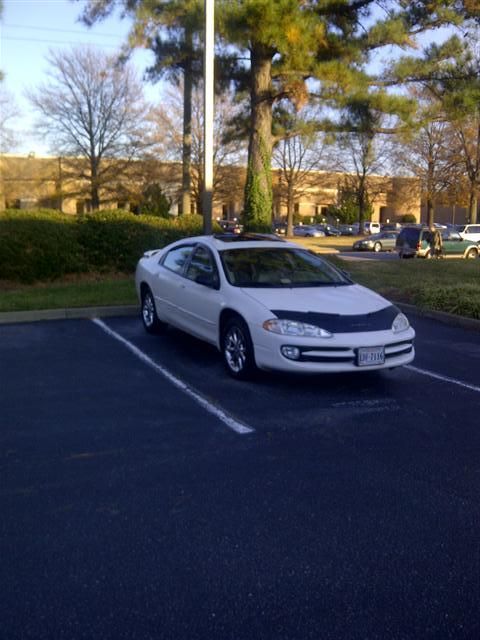

I too just did this during work, real easy, works great, and looks so much better.

cut off wheel mounted on air grinder
popped off round ball at end
cut antenna at desired location
measured antenna diameter at cut
drilled the ball to the correct hole size
tapped back on with hammer

done within 5 minutes
