HID fog retro -- 300m special time...

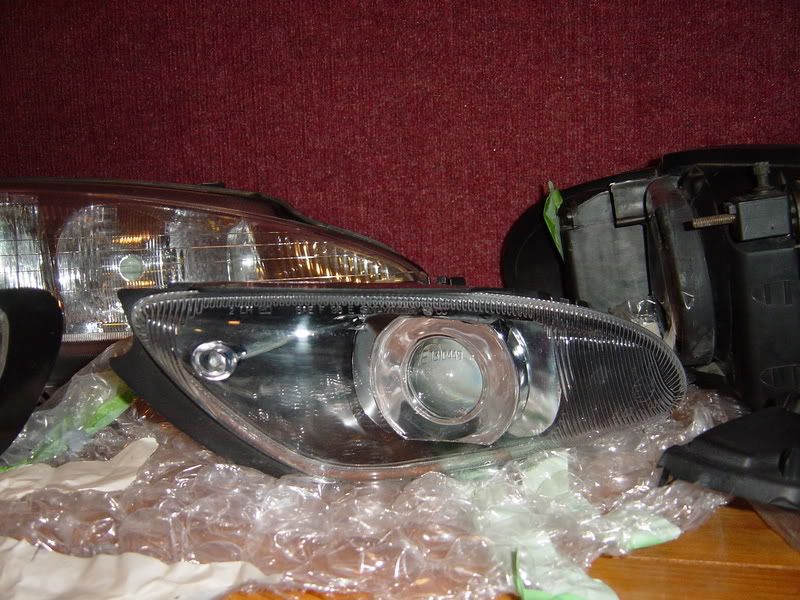

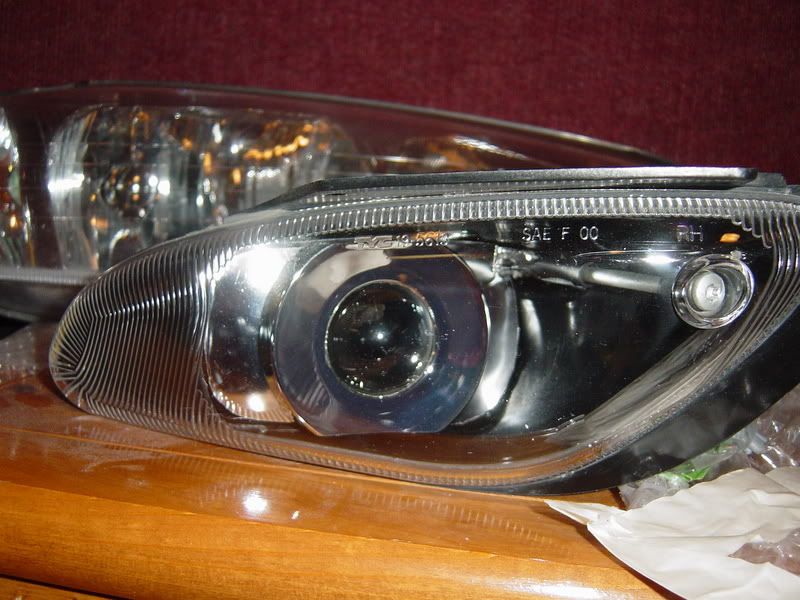

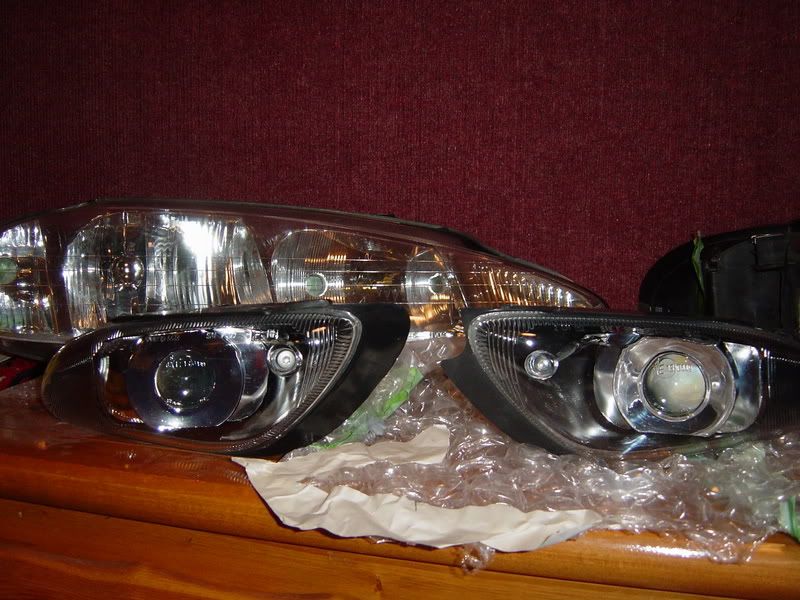

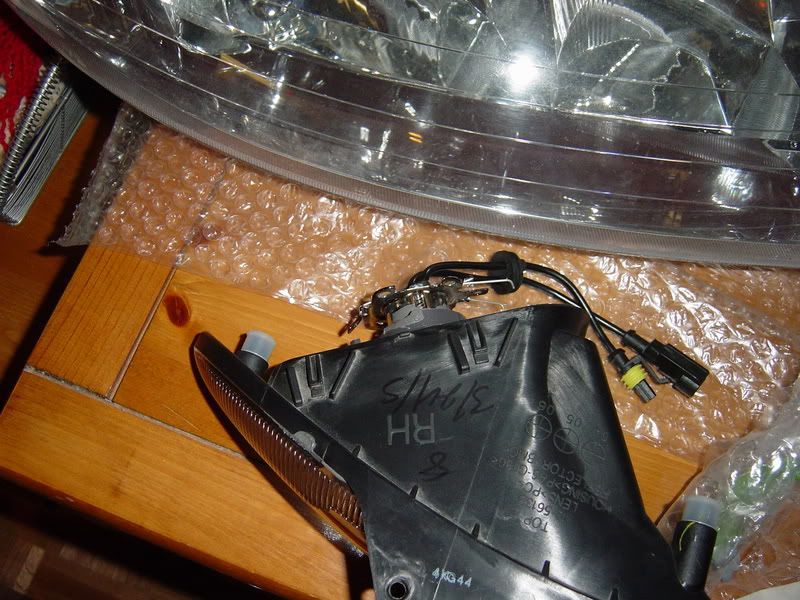

Heres the new fog design for the 300m special.

Let me know what u think guys, they are completely enclosed and aimable as stock fogs... they are actually 3000k HID powered in an h3 capsule with h3 hella fogs similar to my trep. These were done up for Shaun's Special.

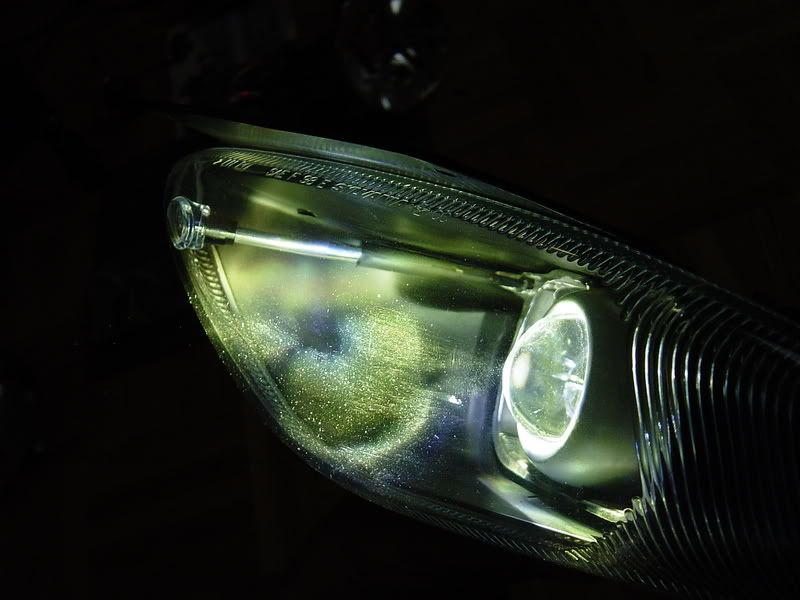

Lit up



linuxglobal is offline
Sponsored Links
Advertisement

post #2 of 30 (permalink) Old 09-17-2006, 01:43 AM

Join Date: Feb 2005
Posts: 5,188
Feedback: 9 / 100%

Oh man, those are just too sweet!!!
00RT is offline
post #3 of 30 (permalink) Old 09-17-2006, 10:55 AM
Intrepid Modder

Join Date: Jul 2006
Location: Georgetown Ky
Posts: 268
Feedback: 0 / 0%

How much to do my specail's fog lamps?
Mill1978 is offline
Sponsored Links
Advertisement

post #4 of 30 (permalink) Old 09-17-2006, 11:59 AM Thread Starter
Intrepid Pro

linuxglobal's Avatar

Join Date: Sep 2005
Location: Mississauga-Toronto, Ontario
Posts: 2,840
Feedback: 5 / 100%

Quote:
Originally Posted by Mill1978
How much to do my specail's fog lamps?
PM me for detailed work order on these guys.

They are actually pretty labour intensive due to the size. Shaun is really lucky because he lives near me otherwise it would be very difficult to get the correct measurments of the area they need to fit into.

Im actually not sure if i want to do another set, i can sell u a kit to do it yourself with all of the parts if you feel up for it. The DIY kit is 65$ USD + shipping. (still needs glues)
linuxglobal is offline
post #5 of 30 (permalink) Old 09-17-2006, 12:06 PM

Join Date: Jan 2004
Posts: 4,544
Feedback: 3 / 100%

what kind of glues Linux? JB WELD Kwik?, or regular stuff?, or...
luisa is offline
post #6 of 30 (permalink) Old 09-17-2006, 12:15 PM Thread Starter
Intrepid Pro

linuxglobal's Avatar

Join Date: Sep 2005
Location: Mississauga-Toronto, Ontario
Posts: 2,840
Feedback: 5 / 100%

Quote:
Originally Posted by luisa
what kind of glues Linux? JB WELD Kwik?, or regular stuff?, or...
- jb weld reg
- jb weld quick
- rtv silicone gasket maker
- clear silicone

~ 40$ CAN of glues in total but you will have glue left over for sure.
linuxglobal is offline
post #7 of 30 (permalink) Old 09-17-2006, 12:20 PM

Join Date: Jan 2004
Posts: 4,544
Feedback: 3 / 100%

Thanks LinuxGlobal!, ;)
luisa is offline
post #8 of 30 (permalink) Old 09-17-2006, 12:32 PM
Intrepid Pro

IS300M's Avatar

Join Date: Feb 2002
Location: RT 128 + RT 95
Posts: 4,083
Feedback: 0 / 0%

I really like these bulbs for H3 retrofits in tight areas


but they are only 6000K and I would want them in 3000K
IS300M is offline
post #9 of 30 (permalink) Old 09-17-2006, 01:15 PM

Join Date: Sep 2005
Posts: 1,102
Feedback: 0 / 0%

those H3 sized bulbs are HID? so u basically good a projector fog light. took the lens glued it into the headlight. and put the H3 HID bulb hooked up to the ballast. correct? i might thy this with my 1st gens housings.
EspizTrep is offline
post #10 of 30 (permalink) Old 09-17-2006, 01:23 PM

Join Date: Sep 2005
Posts: 1,102
Feedback: 0 / 0%

and where did u get the H3 6000k ?
EspizTrep is offline
post #11 of 30 (permalink) Old 09-17-2006, 01:48 PM

Join Date: Aug 2003
Posts: 2,230
Feedback: 1 / 100%

Did you change the aiming screw or is that screw just better on the 300M's?
qp_20 is offline
post #12 of 30 (permalink) Old 09-17-2006, 02:51 PM Thread Starter
Intrepid Pro

linuxglobal's Avatar

Join Date: Sep 2005
Location: Mississauga-Toronto, Ontario
Posts: 2,840
Feedback: 5 / 100%

stock aiming screw, longer on the M... aiming is all stock

projector capsule (not just the lens) the original M reflector was basically discarted, no reflective area was kept. The back of the projector was made to accept h3 easier than original which was a pain with screws instead of a clip.

They are hella/optilux projectors made for h3 bulbs with a d2s like h3 3000k bulb. Orientation of the bulb is changed but the results are pretty decent.

THose h3c bulbs are awesome but hard to find and have a life of 900 hrs... which isnt that appealing plus they put out less lumens (scuba H3) not sure about the Japanese h3c which may be kept at 35W. The traditional H3c was 21W.

linuxglobal is offline
post #13 of 30 (permalink) Old 09-17-2006, 03:57 PM

Join Date: Aug 2003
Posts: 2,230
Feedback: 1 / 100%

Damn I thought that maybe you made a new aiming screw. That would fix my main problem with my fog lights. Who the hell uses graphite as a material for a screw???
qp_20 is offline
post #14 of 30 (permalink) Old 09-17-2006, 04:23 PM Thread Starter
Intrepid Pro

linuxglobal's Avatar

Join Date: Sep 2005
Location: Mississauga-Toronto, Ontario
Posts: 2,840
Feedback: 5 / 100%

Quote:
Originally Posted by qp_20
Damn I thought that maybe you made a new aiming screw. That would fix my main problem with my fog lights. Who the hell uses graphite as a material for a screw???
my trep had metal screws but a graphite/plastic end.. .same as the 300m style fog.

Graphite is heat resistant unlike most plastics.
linuxglobal is offline
post #15 of 30 (permalink) Old 09-17-2006, 04:28 PM

Join Date: Aug 2003
Posts: 2,230
Feedback: 1 / 100%

And it breaks really easy
