She's overcharging and 1.5A of draw with the key off

i've got a 96 trep and while charging voltage should be between 13 and 15 mine is between 15 and 20v. also, with the key off there is a steady 1.5A being drawn from somewhere. what pin @ the pcm is the regulator (DG wire i think)? could the overcharging be the alt?
quadracer is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 01-12-2007, 03:59 PM

Join Date: May 2003
Posts: 1,992
Feedback: 0 / 0%

I believe that the regulator is internal to the PCM/ECU.It looks at more than just load to determine output of the regulator.
Probably have to replace the ECU.
just a guess-I can't get into the FSM schematics right now...
alarkyokie is offline
post #3 of 12 (permalink) Old 01-12-2007, 04:02 PM

Join Date: Jan 2004
Posts: 4,544
Feedback: 3 / 100%

can be an internal voltage regulator.
luisa is offline
Sponsored Links
Advertisement

post #4 of 12 (permalink) Old 01-12-2007, 04:19 PM
get off my lawn


DrDodge's Avatar

Join Date: Jan 2006
Location: Smyrna , Tn
Posts: 15,502
Feedback: 6 / 100%

either the ecm or its grounding out somewhere,, since chrysler dont have a regulator per say,, its all controled by the ecm,, i think its a tan wire but cant for the life of me remember the pin number
DrDodge is offline
post #5 of 12 (permalink) Old 01-13-2007, 04:42 PM Thread Starter

Join Date: Sep 2006
Posts: 11
Feedback: 0 / 0%

does anybody have any good methods of finding a short before the load? i must have one somewhere
quadracer is offline
post #6 of 12 (permalink) Old 01-13-2007, 04:50 PM
Intrepid Pro

jedgxe's Avatar

Join Date: Mar 2004
Location: Wisconsin
Posts: 1,439
Feedback: 0 / 0%

pin #20
jedgxe is offline
post #7 of 12 (permalink) Old 01-13-2007, 05:16 PM Thread Starter

Join Date: Sep 2006
Posts: 11
Feedback: 0 / 0%

ok the EATX shutdown relay energizes whenever the battery is first hooked up with the keys out of the ignition. what is the control on that circuit and whats its purpose? i cant find it in my schematics.
quadracer is offline
post #8 of 12 (permalink) Old 01-13-2007, 05:47 PM
Intrepid Pro

jedgxe's Avatar

Join Date: Mar 2004
Location: Wisconsin
Posts: 1,439
Feedback: 0 / 0%

EATX supplies power to the transmission , the PCM will de-energize it when it senses a trans problem and will put the trans in "limp in" mode.

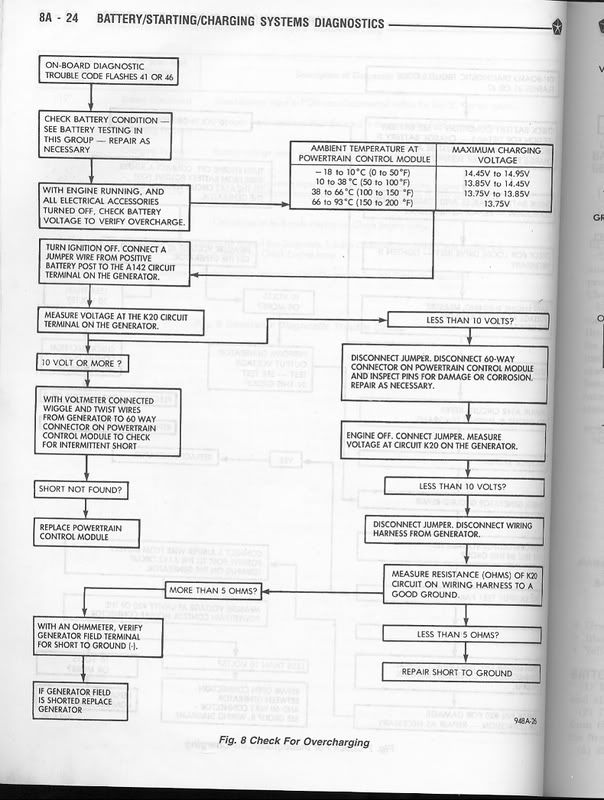

If your charging system voltage is too high, you should be getting fault code #46. If so try this trouble shooting guide , it's from a '94 FSM and should apply to your '96. The circuit refered to as A142 is the DG/OR* wire at generator this gets battery voltage from the ignition switch through the ASD . the same circuit provides power to the injectors and ignition coil pack. The circuit refered to as K20 is DG and goes to pin #20 of the PCM.

2003 Intrepid SXT 51,000 miles 1-10-06

'94 3.3 Intrepid owned since May '94 182,000 miles has been traded in for the above.
jedgxe is offline
post #9 of 12 (permalink) Old 01-13-2007, 05:56 PM Thread Starter

Join Date: Sep 2006
Posts: 11
Feedback: 0 / 0%

so is that eatx relay supposed to be energized when the key is off?
quadracer is offline
post #10 of 12 (permalink) Old 01-15-2007, 10:20 AM

Join Date: Jan 2004
Posts: 4,544
Feedback: 3 / 100%

very interesting post here guys!,
luisa is offline
post #11 of 12 (permalink) Old 01-18-2007, 07:43 PM Thread Starter

Join Date: Sep 2006
Posts: 11
Feedback: 0 / 0%

yeah... i figured it out thanx
quadracer is offline
post #12 of 12 (permalink) Old 01-24-2007, 02:09 AM
Intrepid Fan

Join Date: Feb 2006
Posts: 129
Feedback: 0 / 0%

Smile

What was the problem? Thanks. -CW
