post #1 of 46 (permalink) Old 12-16-2010, 12:43 AM Thread Starter
Intrepid Pro

CaptainMorgan's Avatar

Join Date: Apr 2003
Location: Westerville, Ohio
Posts: 6,239
Feedback: 1 / 100%

Air compressors/Tools.

What is your setup?

I've got a 60 gallon Husky Pro.
CaptainMorgan is offline
Sponsored Links
Advertisement

post #2 of 46 (permalink) Old 12-16-2010, 12:48 AM
I hit shit with sticks!



Daytrepper's Avatar

Join Date: Jan 2005
Location: Zebulon, NC
Posts: 36,997
Feedback: 21 / 100%

Garage
Estimated ship date: 12/23/10...just ordered it direct from Quincy last week:



15.2 CFM @ 175PSI dual stage, 60 gallon.
Daytrepper is offline
post #3 of 46 (permalink) Old 12-16-2010, 01:00 AM Thread Starter
Intrepid Pro

CaptainMorgan's Avatar

Join Date: Apr 2003
Location: Westerville, Ohio
Posts: 6,239
Feedback: 1 / 100%

Dual stage would be awesome, but with the deal I got the price jump wasn't justifiable. My single stage is pretty good and was 1/3 the cost of moving up to the next level, which was 80 gallon two stage.
CaptainMorgan is offline
Sponsored Links
Advertisement

post #4 of 46 (permalink) Old 12-16-2010, 01:12 AM
I hit shit with sticks!



Daytrepper's Avatar

Join Date: Jan 2005
Location: Zebulon, NC
Posts: 36,997
Feedback: 21 / 100%

Garage
Quote:
Originally Posted by CaptainMorgan View Post
Dual stage would be awesome, but with the deal I got the price jump wasn't justifiable. My single stage is pretty good and was 1/3 the cost of moving up to the next level, which was 80 gallon two stage.
I went with the "go all the way and be done" philosophy, (while having the chance lol) plus this should be the last compressor I ever need to buy....also depends on the amount of work to be done, if I get into anything like I used to do in Ohio here, this compressor will have all bases covered. It will handle most anything I can throw at it.

Last edited by Daytrepper; 12-16-2010 at 01:15 AM.
Daytrepper is offline
post #5 of 46 (permalink) Old 12-16-2010, 01:22 AM Thread Starter
Intrepid Pro

CaptainMorgan's Avatar

Join Date: Apr 2003
Location: Westerville, Ohio
Posts: 6,239
Feedback: 1 / 100%

Quote:
Originally Posted by Daytrepper View Post
I went with the "go all the way and be done" philosophy, (while having the chance lol) plus this should be the last compressor I ever need to buy....also depends on the amount of work to be done, if I get into anything like I used to do in Ohio here, this compressor will have all bases covered. It will handle most anything I can throw at it.
I wouldn't have minded going all out, but at the same time mine was my first compressor that I ever got, so it was pretty big for a starter.
CaptainMorgan is offline
post #6 of 46 (permalink) Old 12-16-2010, 07:28 AM
Intrepid Pro

Join Date: Aug 2001
Location: CT
Posts: 11,278
Feedback: 10 / 100%

Still thinking of upgrading to an 80 gallon and mounting it in the rafters of my garage

Helped my buddy do the same thing and loved the idea, no loss of floor space, less noise, etc all for the one time hassle of getting the compressor up there and mounting it
JoeKD is offline
post #7 of 46 (permalink) Old 12-16-2010, 04:28 PM
Bitches be like...



beeblebrox82's Avatar

Join Date: Nov 2007
Location: Holland, MI
Posts: 16,618
Feedback: 6 / 100%

Garage
SO I've been trying to do my research myself, as I am in the market for an air compressor. I want to get into painting cars, starting with the Daytona as my "practice" car (I'm sure I will buy a hood or two from the salvage yard to play with first.)

Any of you gurus have a recommendation as to what to look for for in a compressor to support painting a car? Key specs? My first time through the internet did not find a lot of readily available information. For cost and space reasons I want to stay around the minimum side of the specs. Great thread Dan!
beeblebrox82 is offline
post #8 of 46 (permalink) Old 12-16-2010, 05:38 PM
I hit shit with sticks!



Daytrepper's Avatar

Join Date: Jan 2005
Location: Zebulon, NC
Posts: 36,997
Feedback: 21 / 100%

Garage
Quote:
Originally Posted by beeblebrox82 View Post
SO I've been trying to do my research myself, as I am in the market for an air compressor. I want to get into painting cars, starting with the Daytona as my "practice" car (I'm sure I will buy a hood or two from the salvage yard to play with first.)

Any of you gurus have a recommendation as to what to look for for in a compressor to support painting a car? Key specs? My first time through the internet did not find a lot of readily available information. For cost and space reasons I want to stay around the minimum side of the specs. Great thread Dan!
You'll want something with good volume, a compressor like Captn Dans would support painting a car just fine. You'll want at least 10 CFM for good performance, and depending on the pressure your paint gun operates at (some 40 psi some 90)...if you get a compressor in the range of 5 hp, 10-15 CFM that will cover things just fine. Dual stage would be even better but if your not looking for the additional volume or plan on using it quite often or even continuously, then no worries. You'll also want at least a 125 psi max pressure.

I started with a Campbell Hausfield 60 gallon single stage, it was around 13.5 CFM at 90 psi IIRC. It did very well with painting tools, and would even run a sandblaster.

For just wrenching once and a while, using an impact gun/regular car air tools, you can go smaller, like a 30 gallon 8-10 cfm.


1998 Dodge Intrepid
Ram Logistics Director; Danbo Truck & Diesel, Inc.
Chairman; Let Your 2.7 Live Foundation
President, Danbo Drumming Ventures, GmbH;
Daytrepper is offline
post #9 of 46 (permalink) Old 12-16-2010, 06:41 PM
Intrepid Pro

paintballdude05's Avatar

Join Date: May 2007
Location: Sudbury, Ontario
Posts: 13,180
Feedback: 13 / 93%

Quote:
Originally Posted by JoeKD View Post
Still thinking of upgrading to an 80 gallon and mounting it in the rafters of my garage

Helped my buddy do the same thing and loved the idea, no loss of floor space, less noise, etc all for the one time hassle of getting the compressor up there and mounting it
That's an interesting idea, how does he drain it??
paintballdude05 is offline
post #10 of 46 (permalink) Old 12-16-2010, 07:40 PM Thread Starter
Intrepid Pro

CaptainMorgan's Avatar

Join Date: Apr 2003
Location: Westerville, Ohio
Posts: 6,239
Feedback: 1 / 100%

Quote:
Originally Posted by Daytrepper View Post
You'll want something with good volume, a compressor like Captn Dans would support painting a car just fine. You'll want at least 10 CFM for good performance, and depending on the pressure your paint gun operates at (some 40 psi some 90)...if you get a compressor in the range of 5 hp, 10-15 CFM that will cover things just fine. Dual stage would be even better but if your not looking for the additional volume or plan on using it quite often or even continuously, then no worries. You'll also want at least a 125 psi max pressure.

I started with a Campbell Hausfield 60 gallon single stage, it was around 13.5 CFM at 90 psi IIRC. It did very well with painting tools, and would even run a sandblaster.

For just wrenching once and a while, using an impact gun/regular car air tools, you can go smaller, like a 30 gallon 8-10 cfm.
Nate I was in the exact same boat as you. I wanted one large enough to start painting on.

One thing to keep in mind is that the "old wisdom" of HP ratings doesn't match up with the specs you'll find. Now days compressors usually list the actual running HP of the motor, where as in the old days it used to be listed as the peak HP. I know my exact same compressor that is listed as a 3.2HP IIRC used to be around a 7HP. The only difference is how the specs are listed.
CaptainMorgan is offline
post #11 of 46 (permalink) Old 12-16-2010, 09:44 PM
yippee ki yay


TrepCruzin's Avatar

Join Date: Dec 2007
Location: Fort Worth, TX
Posts: 5,811
Feedback: 2 / 100%

this is the current one.....around the 1st of next year it's getting replaced with a bigger one


probably it's replacement
TrepCruzin is offline
post #12 of 46 (permalink) Old 12-17-2010, 07:32 AM
Intrepid Pro

Join Date: Aug 2001
Location: CT
Posts: 11,278
Feedback: 10 / 100%

Quote:
Originally Posted by paintballdude05 View Post
That's an interesting idea, how does he drain it??
Extend the valve through so it's in the ceiling, same with the supply lines and then hook up power to a light switch
JoeKD is offline
post #13 of 46 (permalink) Old 12-17-2010, 12:57 PM
Intrepid Pro

Scooter-Man's Avatar

Join Date: Dec 2006
Location: Va Beach, VA
Posts: 14,453
Feedback: 6 / 100%

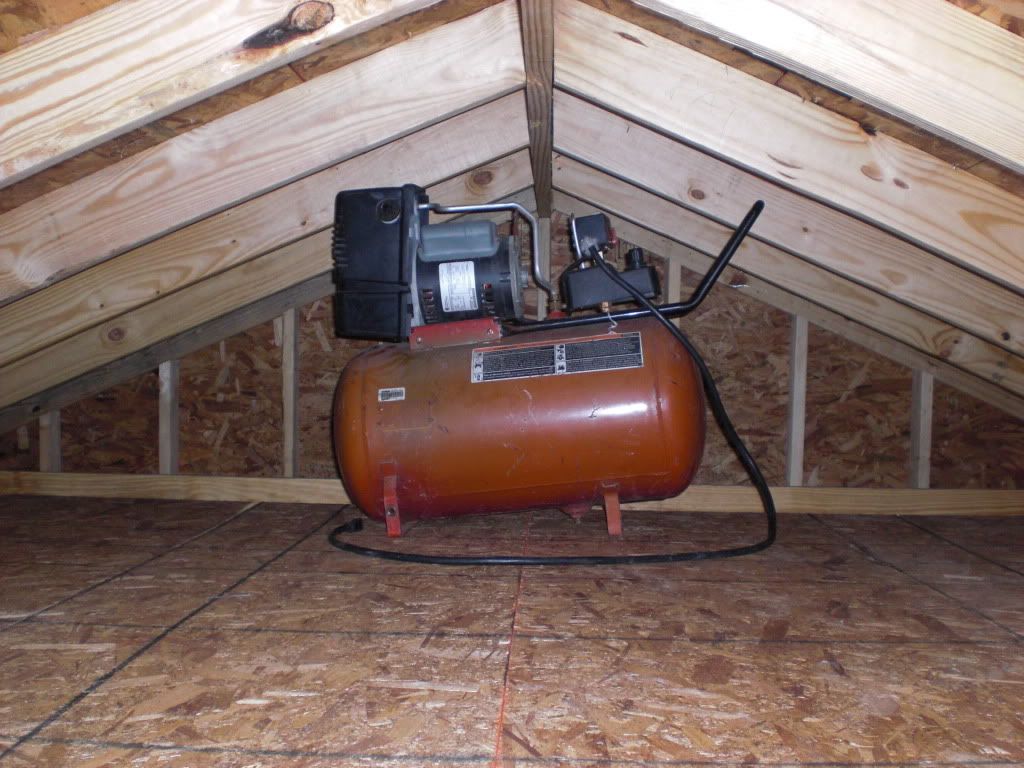

I put my 10 year old Craftsman 30 gallon 5 HP up in the garage attic rafters. Light swtich on the wall for power and two air lines piped through the wall to quick disconnect fittings. I manually crawl up there to drain it. I removed the wheels and mounted the compressor on rubber bushings to isolate any vibration. Works great for my air tools and so forth. If I ever get a blaster or something that requires more CFM, then i'll upgrade. This setup is out of the way and I like it. I'll take some pictures tonight. Even made an extra large access panel in the ceiling drywall to get it out if i needed to.

Late!

Here's a pic when I first put in up there.


Plain Jane Deceased 1/28/19
70mm TB, True Dual Exhaust, 3:89 Gears, 300M Special Front and Rear Sway Bars

Last edited by Scooter-Man; 12-17-2010 at 01:00 PM.
Scooter-Man is offline
post #14 of 46 (permalink) Old 12-17-2010, 11:35 PM Thread Starter
Intrepid Pro

CaptainMorgan's Avatar

Join Date: Apr 2003
Location: Westerville, Ohio
Posts: 6,239
Feedback: 1 / 100%

How about having to change the oil on the compressor with it up in the rafters if you have a big one? I'll take the floor space sacrifice. I also like having the regulator and valve right on the compressor and having access to it.

Certainly an interesting idea. I suppose it depends on the house and what space is valuable.

Plumbed lines are the shit, I think I might actually put mine in my basement some day and plumb lines to multiple locations for me to use the compressor.
CaptainMorgan is offline
post #15 of 46 (permalink) Old 12-17-2010, 11:46 PM
I hit shit with sticks!



Daytrepper's Avatar

Join Date: Jan 2005
Location: Zebulon, NC
Posts: 36,997
Feedback: 21 / 100%

Garage
Eventually I would like to install a shed next to the garage, big enough for the lawnmower and air compressor. That is a ways off yet, too much other stuff to do first, so I will deal with the compressor being in the shop for now. I plan to plumb around the garage, nothing crazy, just 3 or 4 outlets so I dont have to drag air hoses all over. I'll do so keeping the shed in mind.
Daytrepper is offline
