Floor Mat mod part deux

I don't know about you guys, but whether it's the OEM floor mats, or the two different aftermarket mats I've had, the driver's side always moves around. With the OEM mats you could use the anchor, but even them in would just pivot on that axis and end up under the accelerator, which is annoying.

A few months ago I used a grommet punch to make a grommet in the aftermarket floor mats I like but would always slide around, so they could be anchored. However I still had the same problem as with the OEM mats, so today I decided to fix the problem once and for all. I'll write up as a how-to in case anyone's interested. It can be moved to the how-to section if the mods want to, doesn't bother me.

You will need:

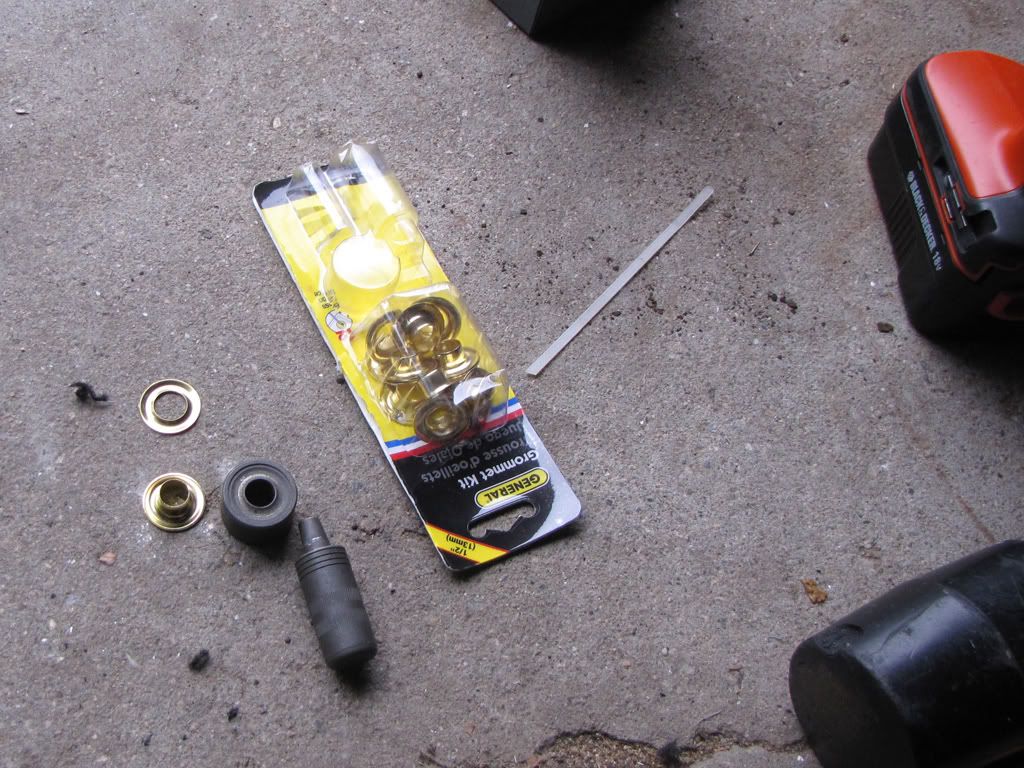

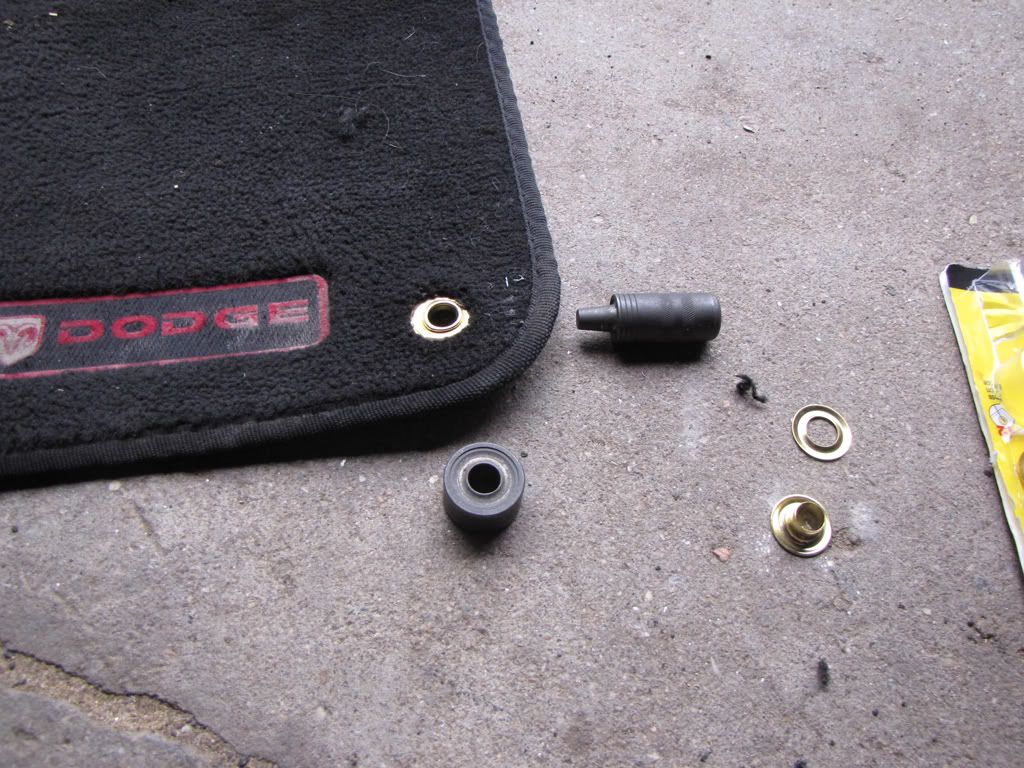

  • Grommet Kit - This can be had from any hardware store, sadly they only had them in brass finish but whatever.
  • Hammer or mallet
  • Drill with large bits
  • Utility Knife
  • Pliers
  • Flat head screwdriver
  • LH floor mat anchor - You can get this from any second gen LH car. They may be the same on other Chrysler products (wouldn't doubt it, and on first gens, but I don't know. To get it, you slide a flat head screwdriver under it and pry it up until the clip releases, then you slide the lower base of the anchor our from under the carpet.

First, remove the floor mat and place it on something you won't mind the drill touching. Turn the floor mat over and place it face down. Measure (or eyeball it) where the second hole should go relative to the first.

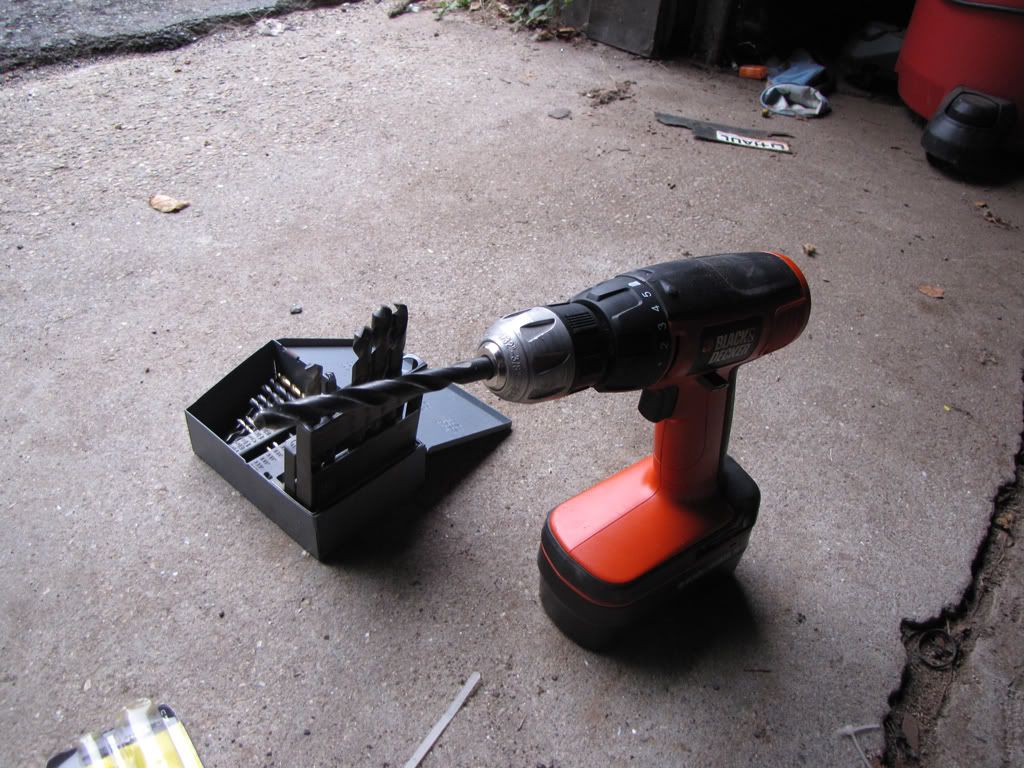

Load in a large drill bit, but should be slightly smaller than the inside diameter of the grommet (you want a nice, snug fit).

Drill through the bottom of the floor mat. Turn the mat over and drill the the hole again to clear out debris.

Test fit the inner part of the grommet. It should fit snugly. If it doesn't fit, widen the hole just enough so it does.

Follow the instructions on the back of the kit and install the grommet using the provided tools and hammer or mallet.

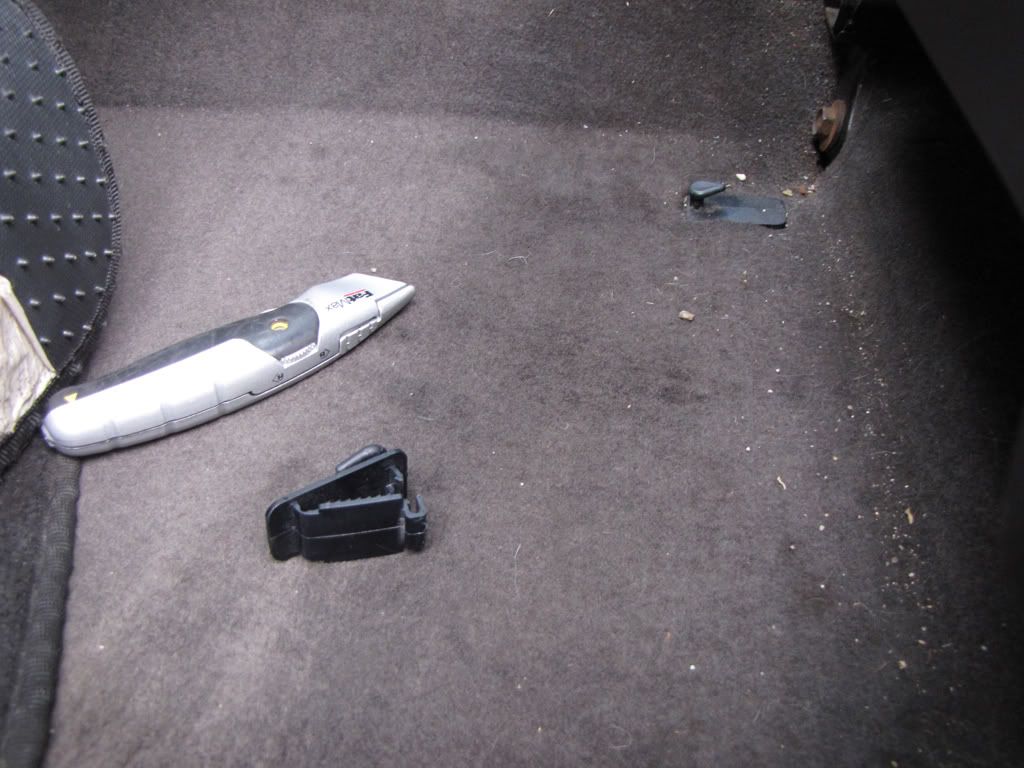

The floor mat is ready! Now comes the fun part. You will need the mat, the second anchor, and a utility knife.

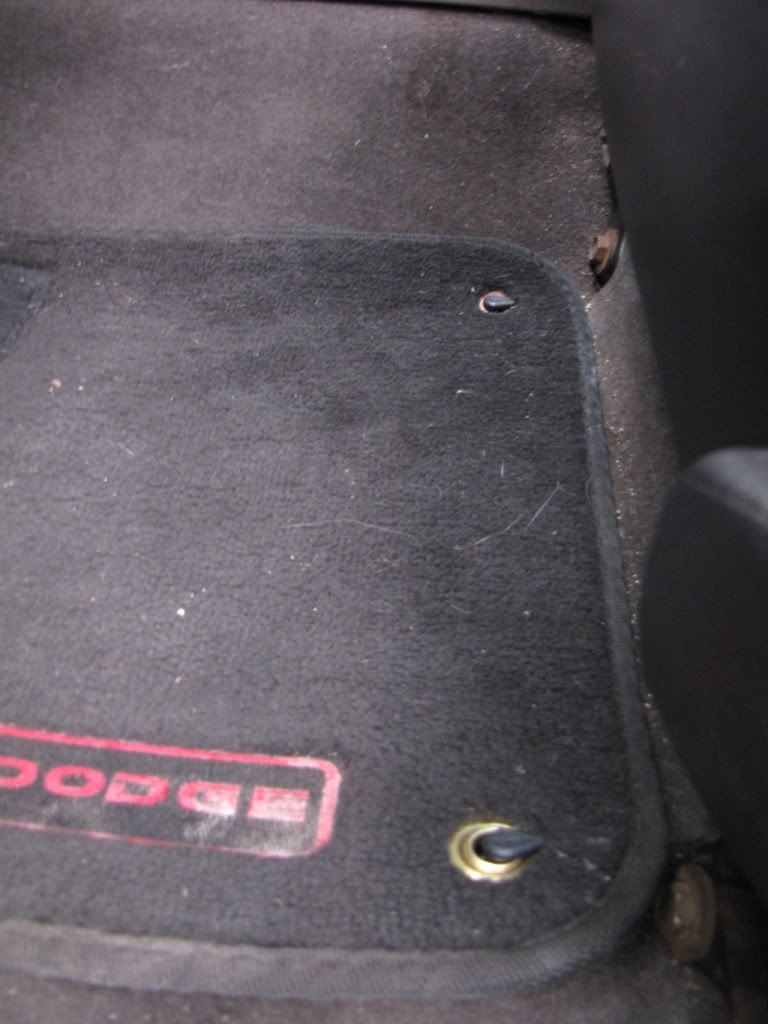

Install the second anchor onto the floor mat. Place your floor mat in the car in the exact location it will end up being anchored.

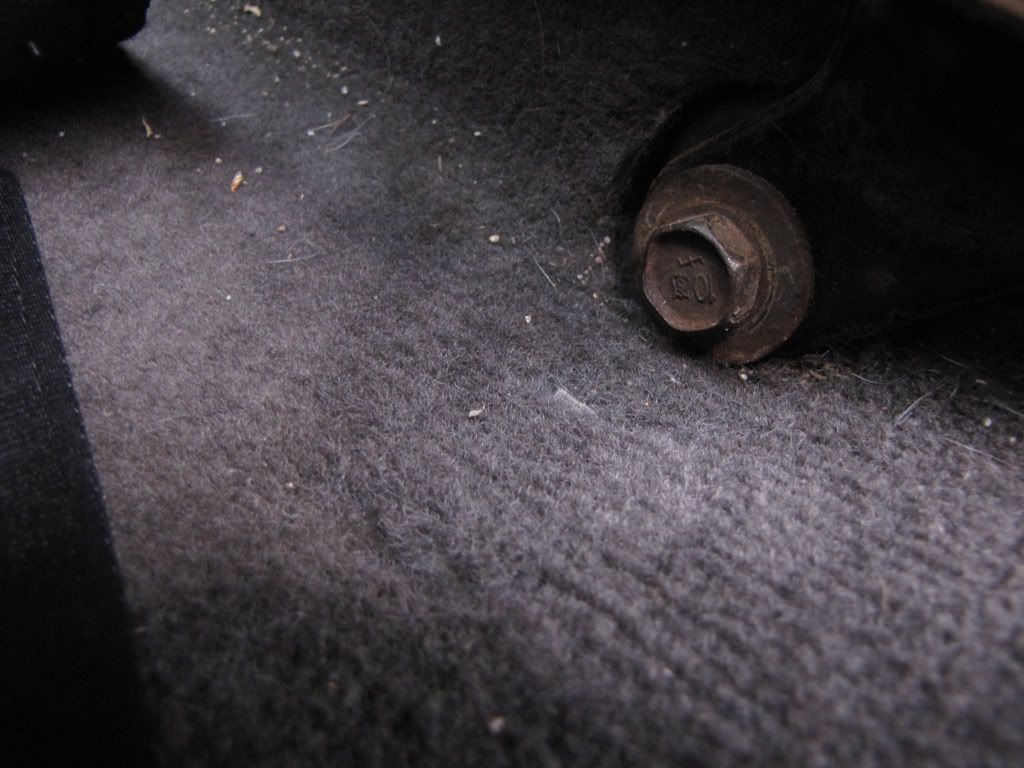

Life the corner of the floor mat up but ensure that the anchor is where your want it to be. Then slice the carpet in the two places for the anchor to be installed.

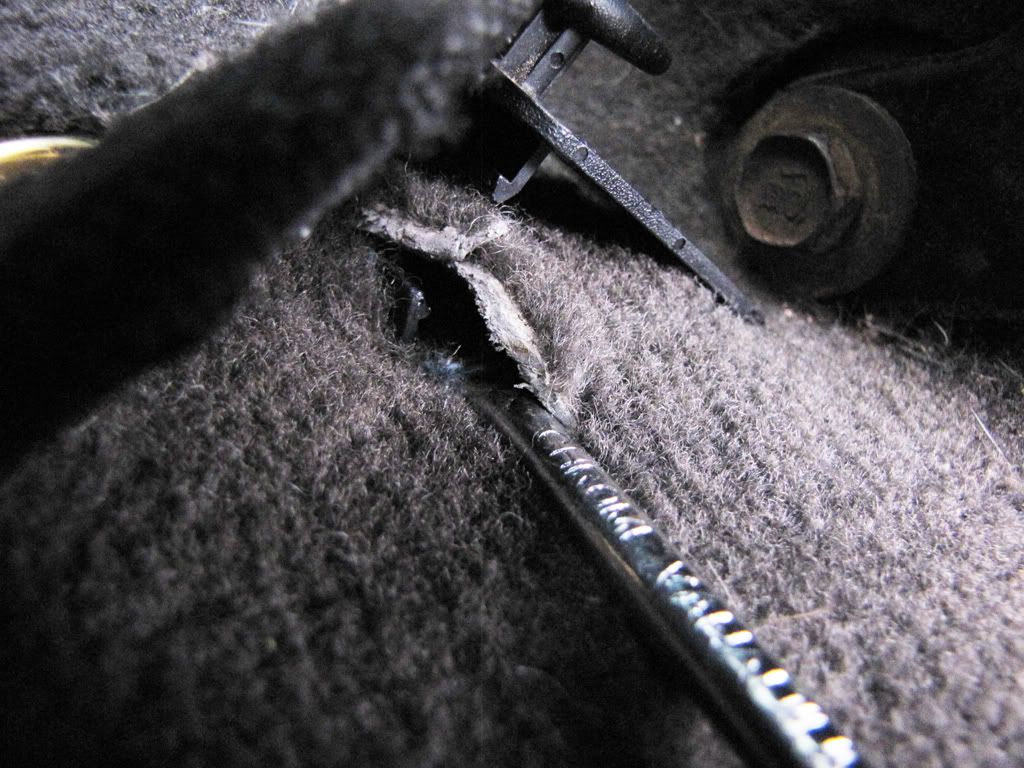

Insert the anchor into the rear cut. Once it's in position, you will need to fiddle with the clip and the carpet. The insulation and the carpet get in the way of the clip, so use a screwdriver and a pair of pliers to pull the other end of the anchor out of the forward slice.

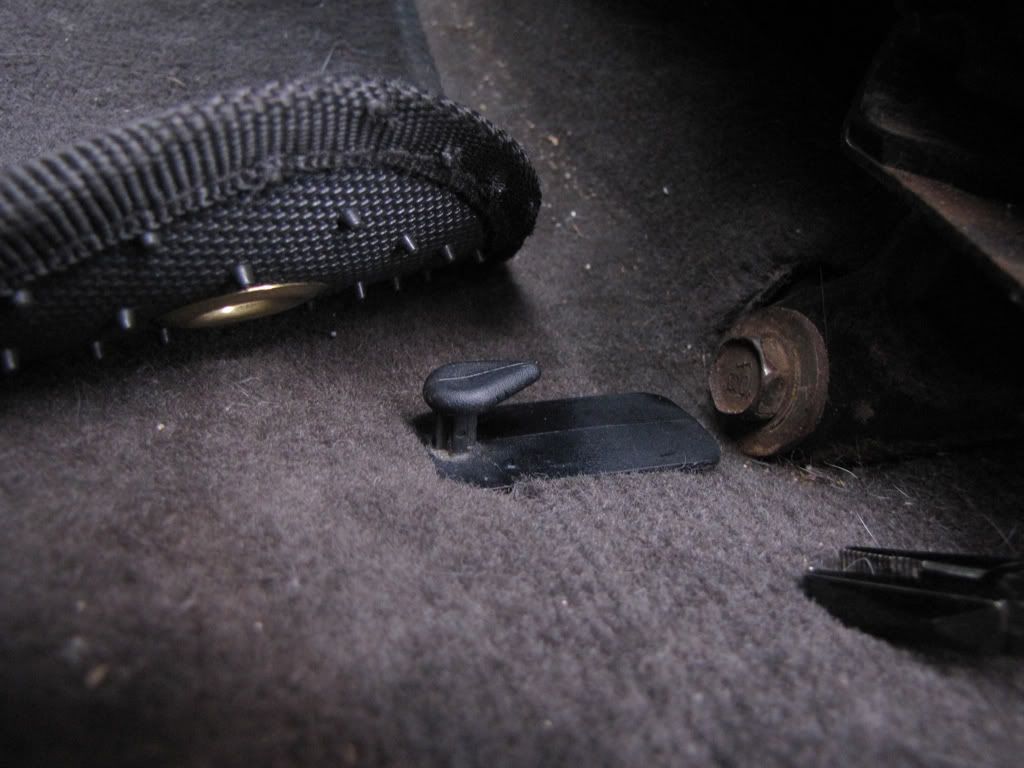

Press the anchor down until the clip snaps into place.

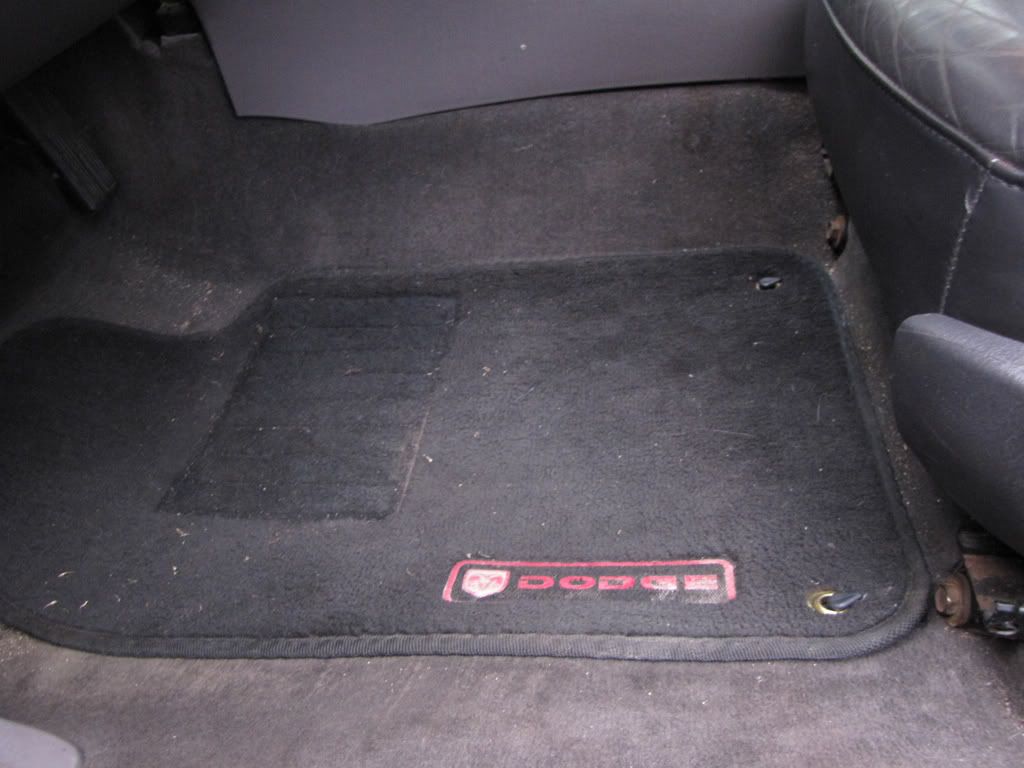

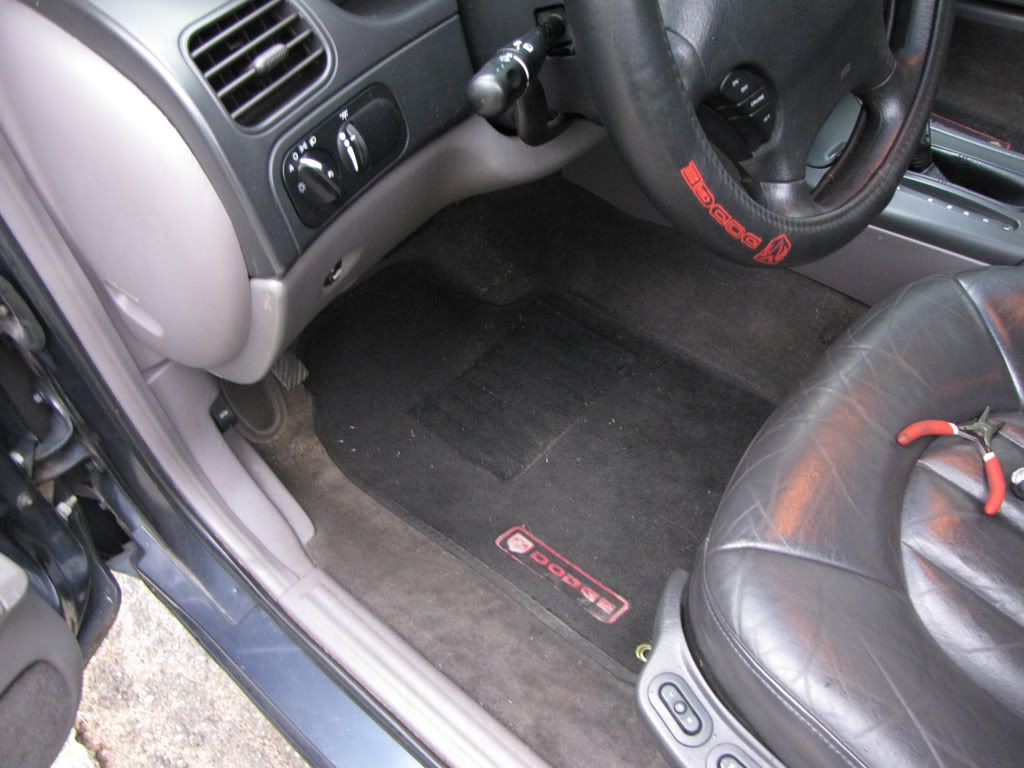

Install the floor mat, and done!





Never again will the floor mat wander around the floor, look messy, or get jammed under the pedals.


The only thing dependable about the future is uncertainty.

Last edited by Intrepidation; 08-15-2010 at 07:45 PM.
Intrepidation is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 08-15-2010, 08:29 PM
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

Nice idea man. I too, find it really annoying, when the mat goes under the acc pedal.
MeanMugga is offline
post #3 of 10 (permalink) Old 08-15-2010, 09:22 PM
Intrepid Pro

04TrepES's Avatar

Join Date: Jul 2005
Location: Billerica, MA
Posts: 2,082
Feedback: 0 / 0%

I dont have an issue with mine moving...
04TrepES is offline
Sponsored Links
Advertisement

post #4 of 10 (permalink) Old 08-15-2010, 09:56 PM
yippee ki yay


TrepCruzin's Avatar

Join Date: Dec 2007
Location: Fort Worth, TX
Posts: 5,811
Feedback: 2 / 100%

way to customize.....nice job
TrepCruzin is offline
post #5 of 10 (permalink) Old 08-15-2010, 10:12 PM Thread Starter
Intrepid Pro

Intrepidation's Avatar

Join Date: Oct 2009
Location: Athol, MA
Posts: 1,188
Feedback: 0 / 0%

Quote:
Originally Posted by 04TrepES View Post
I dont have an issue with mine moving...
Maybe your mat has better traction because your carpet is better. Mine's not nearly as plush and fuzzy for the mat to get traction as it once was. It has a wear hole in it after all.
Intrepidation is offline
post #6 of 10 (permalink) Old 08-15-2010, 10:16 PM
Intrepid Pro

Scooter-Man's Avatar

Join Date: Dec 2006
Location: Va Beach, VA
Posts: 14,502
Feedback: 6 / 100%

I too don't have an issuse with the carpet moving. You did it right and it looks factory, good job.

Late!
Scooter-Man is offline
post #7 of 10 (permalink) Old 08-16-2010, 01:50 AM
Intrepid Pro

scarce911's Avatar

Join Date: Sep 2007
Location: Van Wert, Ohio
Posts: 1,009
Feedback: 8 / 90%

Great mod! .. I put a small 3x3 square of velcro on the under side of mine at the corner back in 02.....but still might do the mod ...It's a cool idea..
only thing that would bother me is the brass .. I'd def. paint it black! I think they have black grommet kits..I vaguely recall seeing them in passing while random browsing a hardware store..
scarce911 is offline
post #8 of 10 (permalink) Old 08-16-2010, 01:58 AM Thread Starter
Intrepid Pro

Intrepidation's Avatar

Join Date: Oct 2009
Location: Athol, MA
Posts: 1,188
Feedback: 0 / 0%

Quote:
Originally Posted by scarce911 View Post
Great mod! .. I put a small 3x3 square of velcro on the under side of mine at the corner back in 02.....but still might do the mod ...It's a cool idea..
only thing that would bother me is the brass .. I'd def. paint it black! I think they have black grommet kits..I vaguely recall seeing them in passing while random browsing a hardware store..
They might, I just didn't see any when I bought the kit last year. I may paint it now that it's installed, I just didn't bother before because I figured the force of the punch would chip a lot of the paint off.
Intrepidation is offline
post #9 of 10 (permalink) Old 08-16-2010, 02:48 AM
Intrepid Pro

scarce911's Avatar

Join Date: Sep 2007
Location: Van Wert, Ohio
Posts: 1,009
Feedback: 8 / 90%

Quote:
Originally Posted by Kimura View Post
They might, I just didn't see any when I bought the kit last year. I may paint it now that it's installed, I just didn't bother before because I figured the force of the punch would chip a lot of the paint off.
Maybe for anyone planning this mod.. slip a piece of paper with a hole cut slightly smaller than the grommet under the grommet top piece before punching..use that as masking for paint..then rip it out when done..
lol.. new icon.. my bro's gf ALWAYS has her crack showing..pretty funny!!...Not sexy in her case..
scarce911 is offline
post #10 of 10 (permalink) Old 08-16-2010, 09:09 AM
1st Gen FTW - It's AutoMedic!


cdmccul's Avatar

Join Date: Jun 2008
Location: Garrison, ND
Posts: 15,449
Feedback: 18 / 100%

Very nice mod! Good universal mod too for any car.

I think the '94 will get that when it is on the road again!
