Illuminated headlight switches aren't just for the super-rich

The super-poor can have them too!
If this has been done before, I am not aware of it.

I got bored after work and this is what I came up with.

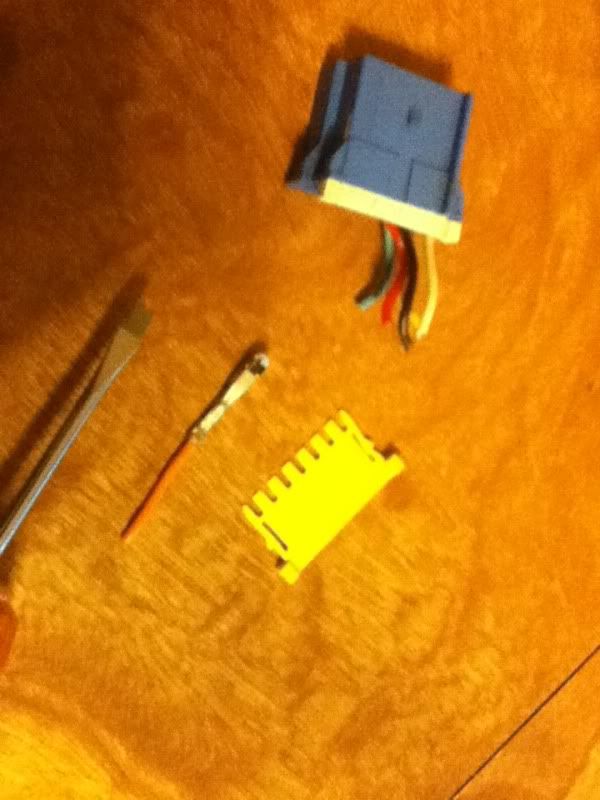

I had a plug laying around that was for an illuminated switch.

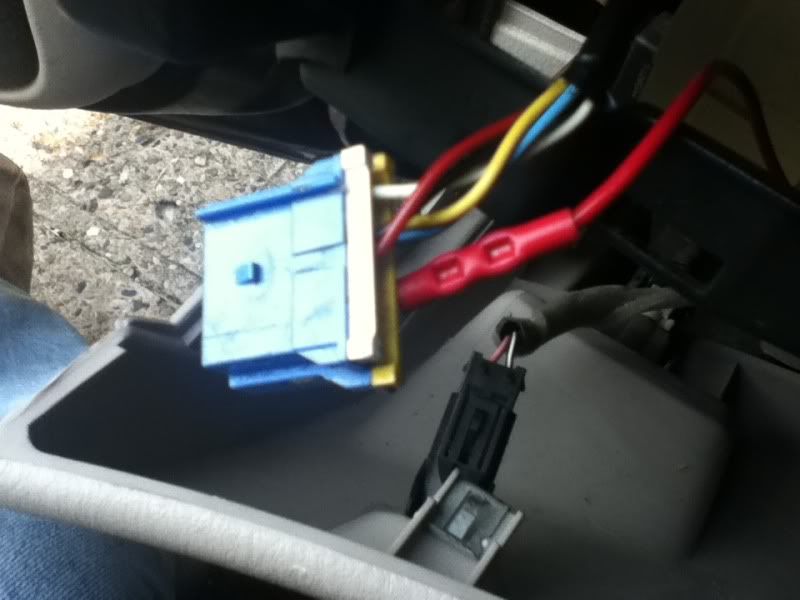

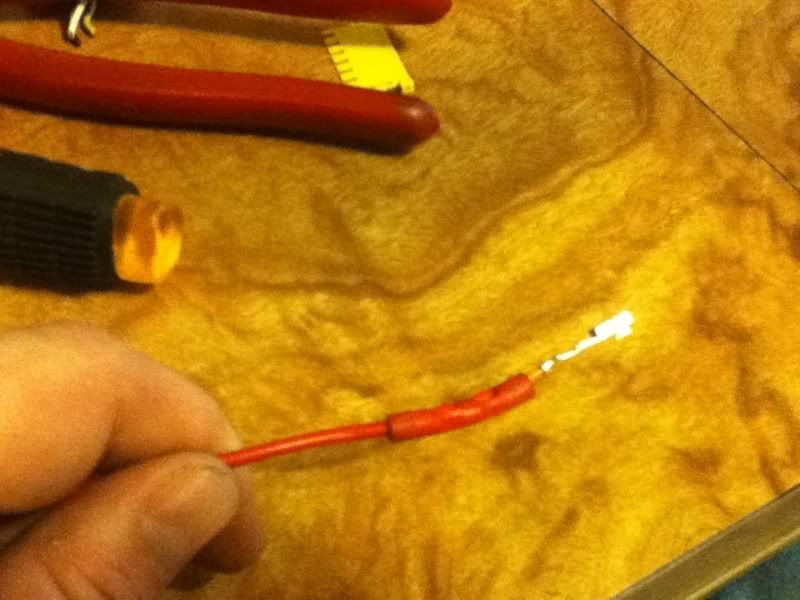

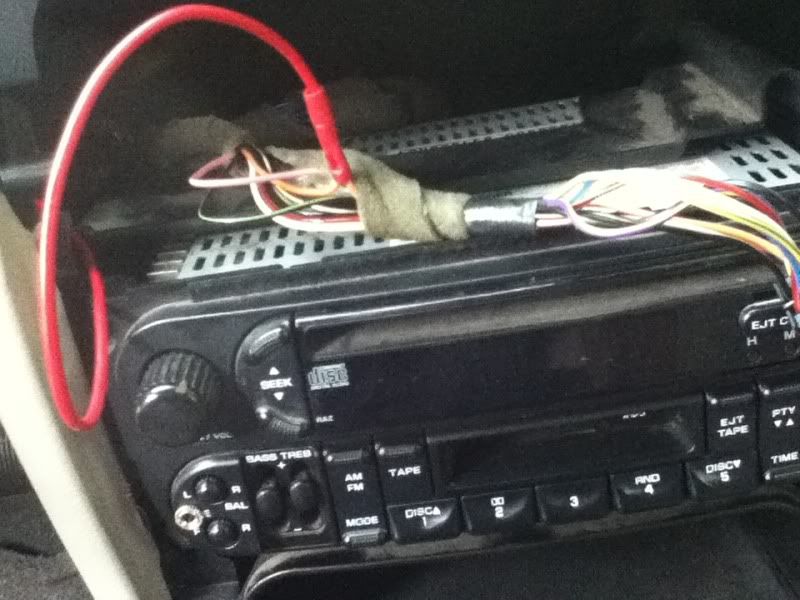

I removed the orange #9 pin and spliced it into the orange wire on the heater control switch pigtail. Ran the wire across to the switch where I placed it in the open #9 slot on the plug.


I still don't have any good bulbs yet, but I did check the strip across the top and confirmed 12V at the switch.

So, all in all, it took about 45 minutes, 30" of wire, 2 wire crimps and a Diet Dew to rig this up. It's 90 degrees in the shade so I don't know why this couldn't have waited.

Also, completely unrelated, as I did this weeks ago but I got a pic of it finally:

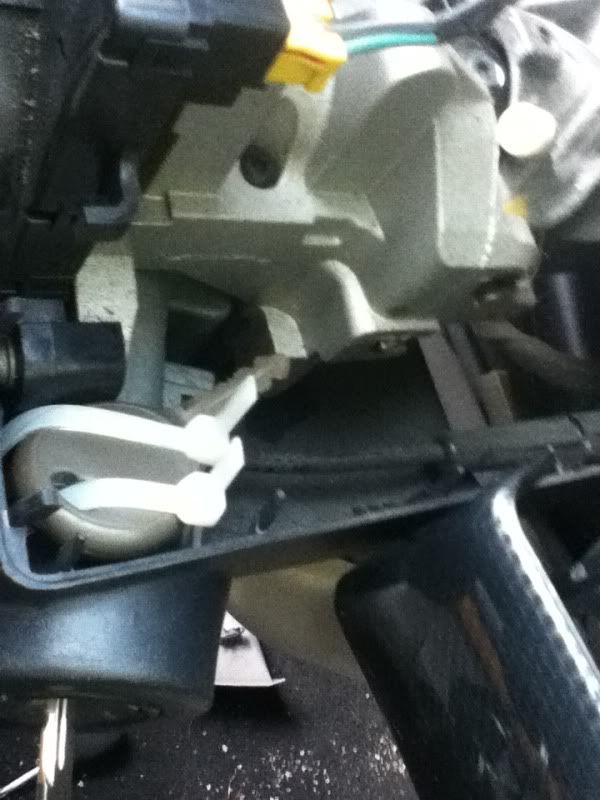

This is how you rig up your car if you only have one working key and do not want to pay more than $4 for another key.

2004 Chrysler 300m Special 3.5L HO 123k
2001 Dodge Intrepid ES 3.2L 156k
2001 Chrysler 300m 114k (parts car)
2002 Chrysler 300m Special (project car)
micholob is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 09-01-2011, 07:17 AM
Intrepid Pro

scarce911's Avatar

Join Date: Sep 2007
Location: Van Wert, Ohio
Posts: 1,009
Feedback: 8 / 90%

I had no idea that non-illuminated switches existed...took me about 5 minutes to "get" what was goin on in this post..lol
scarce911 is offline
post #3 of 10 (permalink) Old 09-01-2011, 07:59 AM Thread Starter
Intrepid Pro

micholob's Avatar

Join Date: Oct 2005
Location: Osceola, IA
Posts: 2,455
Feedback: 4 / 83%

Yes, all 03's and 04's were stripped of a lot of things, including lighted headlight switches, lighted window and door lock switches and courtesy lamps in all the doors. I mean, why would anybody want to find any of those things in the dark anyways right?

Last edited by micholob; 09-01-2011 at 09:39 AM.
micholob is offline
Sponsored Links
Advertisement

post #4 of 10 (permalink) Old 09-01-2011, 01:26 PM
Intrepid Pro

paintballdude05's Avatar

Join Date: May 2007
Location: Sudbury, Ontario
Posts: 13,180
Feedback: 13 / 93%

Exactly^^ I upgraded my '03 Specials wiring to '01 specs where everything was nicely lit! I even change the Trac button to have the lighted one.
paintballdude05 is offline
post #5 of 10 (permalink) Old 09-01-2011, 02:06 PM
Intrepid Pro

GTXKen's Avatar

Join Date: Feb 2005
Location: Lowell, IN
Posts: 1,925
Feedback: 2 / 100%

I may be an idiot but I don't get the key thing at all, please explain....slowly for us dummies
GTXKen is offline
post #6 of 10 (permalink) Old 09-01-2011, 02:23 PM
Woober Goobers!


Ronbo's Avatar

Join Date: Mar 2005
Location: Tiny Pebble, AR
Posts: 48,852
Feedback: 44 / 100%

That's a Sentry key he's got. A replacement key from the dealer can easily cost $80 or more for the key, cut and programming. So it looks like he attached the Sentry key to the SKIM module and had a standard key cut and is using that for the ignition switch. Only issue with that is the SKIM is defeated with that sentry key there. So anyone can jack the ignition lock and start the car and have it run as normal.
Ronbo is online now
post #7 of 10 (permalink) Old 09-01-2011, 02:57 PM
Intrepid Pro

GTXKen's Avatar

Join Date: Feb 2005
Location: Lowell, IN
Posts: 1,925
Feedback: 2 / 100%

Quote:
Originally Posted by Ronbo View Post
That's a Sentry key he's got. A replacement key from the dealer can easily cost $80 or more for the key, cut and programming. So it looks like he attached the Sentry key to the SKIM module and had a standard key cut and is using that for the ignition switch. Only issue with that is the SKIM is defeated with that sentry key there. So anyone can jack the ignition lock and start the car and have it run as normal.
Ahh thanks...my lowly Gen I Intrepids don't have such fancy things
GTXKen is offline
post #8 of 10 (permalink) Old 09-01-2011, 03:00 PM
Intrepid Modder

Join Date: Jun 2011
Location: Michigan
Posts: 560
Feedback: 3 / 100%

Quote:
Originally Posted by scarce911 View Post
I had no idea that non-illuminated switches existed...took me about 5 minutes to "get" what was goin on in this post..lol
Me too!

Quote:
Originally Posted by micholob View Post
Yes, all 03's and 04's were stripped of a lot of things, including lighted headlight switches, lighted window and door lock switches and courtesy lamps in all the doors.
Really? Screw Diamler and their cheapa** decontenting!

Also, "Illuminated headlight switches aren't just for the super-rich" isn't a Red Green reference, is it? Because if it is, I love it!

Edit: Found it! Red Green Show - All Wheel Drive
might as well throw this one in here too: Red Green Show - Power Windows

Last edited by joe_; 09-01-2011 at 03:06 PM.
joe_ is offline
post #9 of 10 (permalink) Old 09-01-2011, 03:06 PM Thread Starter
Intrepid Pro

micholob's Avatar

Join Date: Oct 2005
Location: Osceola, IA
Posts: 2,455
Feedback: 4 / 83%

Quote:
Originally Posted by joe_ View Post
Me too!


Really? Screw Diamler and their cheapa** decontenting!

Also, "Illuminated headlight switches aren't just for the super-rich" isn't a Red Green takeoff, is it? Because if it is, I love it!

Edit: Found it! Red Green Show - All Wheel Drive
might as well throw this one in here too: Red Green Show - Power Windows
Exactly! I love that show and that is one of my favorite Handyman Corner clips!
"You got to get one to do just the opposite of what the other is... kind like a marriage!"
micholob is offline
post #10 of 10 (permalink) Old 09-01-2011, 04:04 PM
Woober Goobers!


Ronbo's Avatar

Join Date: Mar 2005
Location: Tiny Pebble, AR
Posts: 48,852
Feedback: 44 / 100%

Duck tape is man's best friend!
