3.5 Suction hole

i just recently did the engine converstion.

on the back of the 3.5 plenum next to the throttle body on the driver side there is or supost to be a hose there. just noticed mine is cut and missing and its sucking air into that hole anyone knows where this hooks up to?
Caliko is offline
Sponsored Links
Advertisement

post #2 of 8 (permalink) Old 01-31-2012, 08:13 PM
Intrepid Pro

sc.intrepid's Avatar

Join Date: Aug 2004
Location: Charleston, SC
Posts: 4,600
Feedback: 5 / 100%

That would be your PCV. hose. There should be a fitting in the upper intake manifold(PCV valve). The hose that runs off of it is connected to a heater canister. the hose off of that connects to a fitting at the rear of the driver side cylinder head.

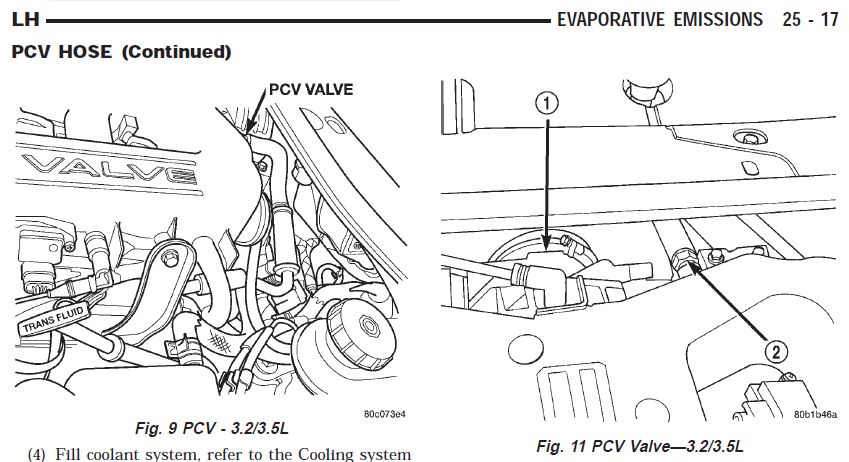

I thought I had a pic:


If you haven't downloaded the factory service manual, you really should. All kinds of good info in there

Last edited by sc.intrepid; 01-31-2012 at 08:19 PM.
sc.intrepid is offline
post #3 of 8 (permalink) Old 01-31-2012, 08:42 PM
tgs
Intrepid Pro

Join Date: Aug 2006
Location: Stuck in Indianapolis until the end of time
Posts: 1,898
Feedback: 3 / 100%

Quote:
Originally Posted by Caliko View Post
on the back of the 3.5 plenum next to the throttle body on the driver side there is or supost to be a hose there. just noticed mine is cut and missing and its sucking air into that hole anyone knows where this hooks up to?
You are referring to #2 in the illustration above, right?

The PCV valve is supposed to be screwed into that hole.
If the valve is there, you can connect your pcv hose directly to it.
The early versions 98, 99 and maybe 2000 just ran a molded hose from the valve over to the valve cover.
The later versions all used a heat exchanger in between.

On my swaps, I just picked up a new PCV valve from AZ and the molded hose from the dealer.
,
,
tgs is offline
Sponsored Links
Advertisement

post #4 of 8 (permalink) Old 01-31-2012, 08:49 PM
Intrepid Pro

Join Date: Feb 2002
Location: Virginia, U.S.
Posts: 16,196
Feedback: 4 / 83%

Nm...
peva is offline
post #5 of 8 (permalink) Old 02-01-2012, 09:20 PM Thread Starter
Intrepid Newbie

Caliko's Avatar

Join Date: Sep 2008
Location: Iraq
Posts: 58
Feedback: 0 / 0%

how important is it? will it mess up the engine with it not hooked up for a while?
Caliko is offline
post #6 of 8 (permalink) Old 02-01-2012, 10:32 PM
Intrepid Pro

sc.intrepid's Avatar

Join Date: Aug 2004
Location: Charleston, SC
Posts: 4,600
Feedback: 5 / 100%

Quote:
Originally Posted by Caliko View Post
how important is it? will it mess up the engine with it not hooked up for a while?
I think you could putt around a day or two without it. You would want to plug the hole on the upper manifold so there isn't a vacuum leak. You would also want to block the hole at the other end that goes into the engine.
sc.intrepid is offline
post #7 of 8 (permalink) Old 02-03-2012, 07:29 AM
Intrepid Modder

Brando26's Avatar

Join Date: Jun 2009
Location: Elizabethtown, KY
Posts: 706
Feedback: 7 / 100%

you can just get a few feet of 5/8" heater hose from AAP along with an assortment of hose clamps. you'll have to change the hose every year because it isnt made to stand up to oil, but it will do the job at 1/10th the cost of the dealer cost for the PCV hose.
Brando26 is offline
post #8 of 8 (permalink) Old 02-03-2012, 07:30 AM
Intrepid Modder

Brando26's Avatar

Join Date: Jun 2009
Location: Elizabethtown, KY
Posts: 706
Feedback: 7 / 100%

or you could buy one of the J shaped hoses from this guy - those are PCV hoses

https://www.dodgeintrepid.net/showthread.php?t=217941
