LED lightbar

So, I got another lightbar from a JY, but i cant seem to find the right LED's to put in it...I want something REALLY bright, and I have looked all over, and I was looking at these:http://cgi.ebay.com/30p-10mm-MEGABRI...em120074525910

im assuming that it is BS, isnt 130000MCD very bright? I mean, when I went to look at radio shack, a guy there told me that the brightest they have are 800MCD...so im not too sure what to get.
any help would be great.

EDIT:
after reading more carefuly, it seems like they are in HonG Kong, and since I dont have a paypal account, i cant get those, but if someone could turn me in the right direction, it would be awesome!
thanks,
Andrei

2000 SE
Badasstrep is offline
Sponsored Links
Advertisement

post #2 of 40 (permalink) Old 01-13-2007, 01:14 AM
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

I got some LEDs of ebay a week ago to put in the ac vents, and they were pretty bright. I checked out the link and I think they are bright. when buying LEDs always look at the viewing angle, cause I think thats what determine it brightness level. the ones u was looking at is rated 5to12 degrees viewing angle. thats real bright looking straigth on. I would recommend you buy the pre-wired one too(makes the job much easier).
MeanMugga is offline
post #3 of 40 (permalink) Old 01-13-2007, 10:49 AM Thread Starter
Intrepid Pro

Badasstrep's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 1,985
Feedback: 4 / 100%

I ordered some superbright ones from mouser.com, along with some 680 ohm resistors
Badasstrep is offline
Sponsored Links
Advertisement

post #4 of 40 (permalink) Old 01-14-2007, 03:27 PM
Intrepid Modder

sinastis's Avatar

Join Date: Oct 2002
Location: Boring state of Kansas
Posts: 458
Feedback: 0 / 0%

sinastis is offline
post #5 of 40 (permalink) Old 01-14-2007, 05:01 PM
Intrepid Modder

Join Date: Aug 2005
Posts: 337
Feedback: 1 / 100%

This probably ain't what you want but I think it's cool.
http://www.stylinconcepts.com/parts....tfamilyid=1713
Strizay is offline
post #6 of 40 (permalink) Old 01-14-2007, 11:43 PM Thread Starter
Intrepid Pro

Badasstrep's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 1,985
Feedback: 4 / 100%

haha, no not what i need, but that is really cool!
Badasstrep is offline
post #7 of 40 (permalink) Old 01-15-2007, 10:16 AM
Intrepid Pro

Join Date: May 2002
Posts: 4,553
Feedback: 0 / 0%

From another thread.....
Quote:
Originally Posted by In2Deep
Here are the ones that I have purchased (twice!) along with the resistors I use. Oh...and I buy them online from Mouser.
LED's: 604-L7113SRC/DW
Resistors: 660-CF1/2L681J
I have a total of 66 LED's in the current version. Total cost for LED's and Resistors: ~$25 shipped.
It took me a few hours to solder them all up and place them, and I'm more than happy with the results!

PM me if ya want tips and/or pics on how I did my setup!
These are plenty bright for me. I have mine wired into my marker light circuit.
slowbra is offline
post #8 of 40 (permalink) Old 01-15-2007, 10:26 AM

Join Date: Jan 2004
Posts: 4,544
Feedback: 3 / 100%

Any pics of your LED Setup pal?< Can You PM me with more info?, I would love to do my 3rd brake light bar, and my door handles!, ;)

Thanks!

Luie
luisa is offline
post #9 of 40 (permalink) Old 01-15-2007, 11:02 AM Thread Starter
Intrepid Pro

Badasstrep's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 1,985
Feedback: 4 / 100%

yea, in2deep, I would like to see what 66 LED's look like
Badasstrep is offline
post #10 of 40 (permalink) Old 01-15-2007, 12:00 PM
Intrepid Pro

Join Date: May 2002
Posts: 4,553
Feedback: 0 / 0%

I'll get my pics out and post them later today if I can.
slowbra is offline
post #11 of 40 (permalink) Old 01-15-2007, 01:13 PM

Join Date: Feb 2005
Posts: 5,188
Feedback: 9 / 100%

Yeah Gary, do it up!
00RT is offline
post #12 of 40 (permalink) Old 01-16-2007, 10:23 AM
Intrepid Pro

Join Date: May 2002
Posts: 4,553
Feedback: 0 / 0%

Well...I didn't have a chance to get pics last night, but I have a couple that I snapped when I was originaly putting it all together.

The first pic is of the LED's that are in the center-most position of the reflector bar (next to the 3rd brakelight section). This is how I did the "sub-assemblies". I built them in "sets" and then hooked them all together once they were installed. Each LED has a resister soldered to it..yes, it's time consuming! I then soldered all the negative (-) cathodes (ground) together to a common post for each "set" of LED's.
[IMG]http://i49.photobucket.com/albums/f294/*********/Dsc02492.jpg[/IMG]

Here is that same set of LED's installed on the reflector bar. The LED's are 5mm, and the holes are drilled approx. .75" apart. You can see the single "post" that I used to connect them all to the ground wire.
[IMG]http://i49.photobucket.com/albums/f294/*********/Dsc02490.jpg[/IMG]

Here are all the LED's installed on one side of the Reflector bar. I used Super Glue "gel" to hold them in place. Seems to work pretty well. I applied the glue around the lip of each LED and then pushed them into place to get a good fit that would seal all the way around each LED.
[IMG]http://i49.photobucket.com/albums/f294/*********/Dsc02491.jpg[/IMG]

I essentially did the same thing with the positive (+) cathodes as I did with the negatives. I soldered each "set" to a common cathode in the middle of each group, and then soldered that single post to a wire that I tied into my marker lights for power. The negative cathodes were soldered to another wire and grounded to the decklid where the latch is secured. The routing of the positive (power) wire just followed the latch and brake-light wires that are already in place. I just pulled it through and taped them all together.
[IMG]http://i49.photobucket.com/albums/f294/*********/trunk_1.jpg[/IMG]

I can't promise anything, but I'll TRY to get more pics in the next day or two...
slowbra is offline
post #13 of 40 (permalink) Old 01-16-2007, 02:03 PM
Intrepid Pro

Join Date: May 2003
Location: Abilene Texas
Posts: 2,074
Feedback: 2 / 100%

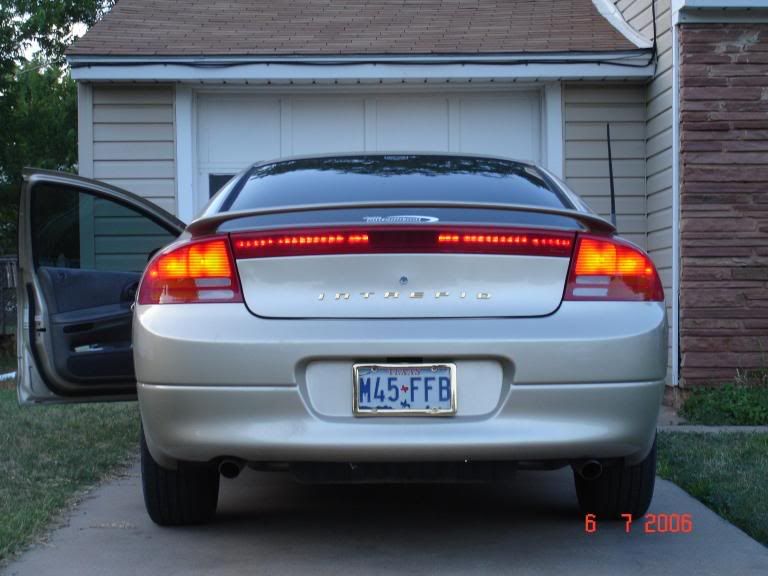

Here is Garys first one. It is on my car. LOVE IT!!!!!
