post #61 of 239 (permalink) Old 11-04-2010, 12:07 AM Thread Starter
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

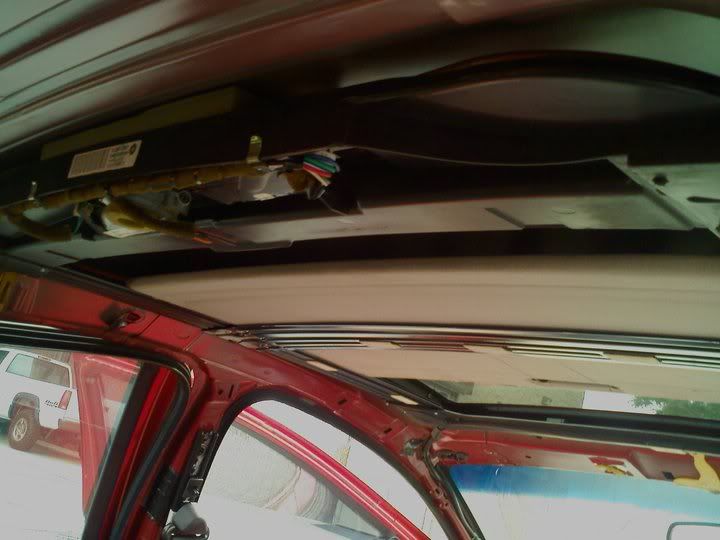

Dissembled the overhead unit... and sanded the housing with some 220 grit sandpaper..



...it was then cleaned and wiped free of any grease and dirt. Once dried I sprayed on some adhesion promoter...then a few coats of gray filler primer. Let that dry a few hours. Then wet sand it with some 400 grit sandpaper...



...wiped it again with degreaser.. then sprayed 1 light coat of matte paint ...then 3-4 more wet coats ...with 5 minutes between each.



...45min later... I sprayed on about 6 coats of clear...following the same guidelines. I was already glossy...and smooth..since I'm so good with my paint technique ;-D

...To give it that mirror finish. I let the paint cure for 3 days... then wetsanded the clear coat with some 1200, then 1500, then 2000, then 2500 grits paper.




...the paint was dull again. To bring back the shine... you use some buffing/rubbing compound (I used Turtle Wax) for that. Spread on an even coat...then use a soft fiber towel to buff it vigorously... then wipe clean.

You can see the difference...in the pic

I added some wax on it afterward


...All done.

Do you see the shine of that biaaatch!

Damn I'm good!




Quote:
Originally Posted by Dudley View Post
Gonna go have sex.... be back in 30 seconds............
MeanMugga is offline
Sponsored Links
Advertisement

post #62 of 239 (permalink) Old 11-04-2010, 12:38 AM
Intrepid Pro

CaptainMorgan's Avatar

Join Date: Apr 2003
Location: Westerville, Ohio
Posts: 6,239
Feedback: 1 / 100%

Wendel that looks great, but one thing. Don't you have to let paint off gas for quite some time before you put any wax on it?
CaptainMorgan is offline
post #63 of 239 (permalink) Old 11-04-2010, 01:10 AM Thread Starter
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

Quote:
Originally Posted by CaptainMorgan View Post
Wendel that looks great, but one thing. Don't you have to let paint off gas for quite some time before you put any wax on it?
Yeah that's what they say. I only follow that rule when using actual car paint...and not spray can stuff. I usually wait up to 7 days only, with interior pieces.

Then again, I rarely use wax on interior pieces.

I'm pretty certain that the gas will permeate the wax anyway...just takes longer.
MeanMugga is offline
Sponsored Links
Advertisement

post #64 of 239 (permalink) Old 06-11-2011, 10:53 PM Thread Starter
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

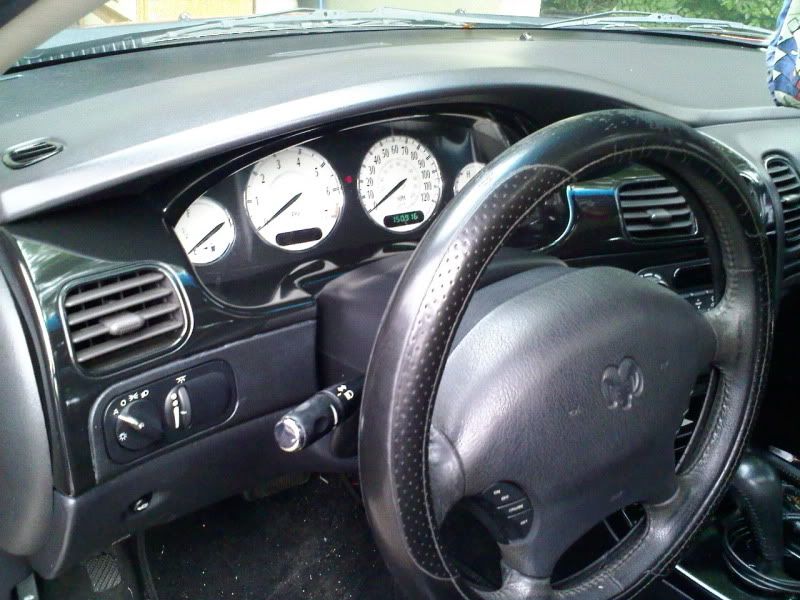

My old steering wheel/cover...

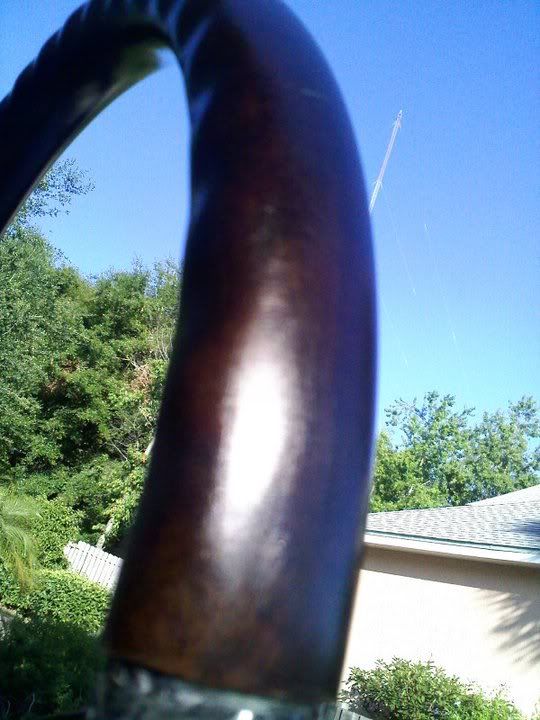

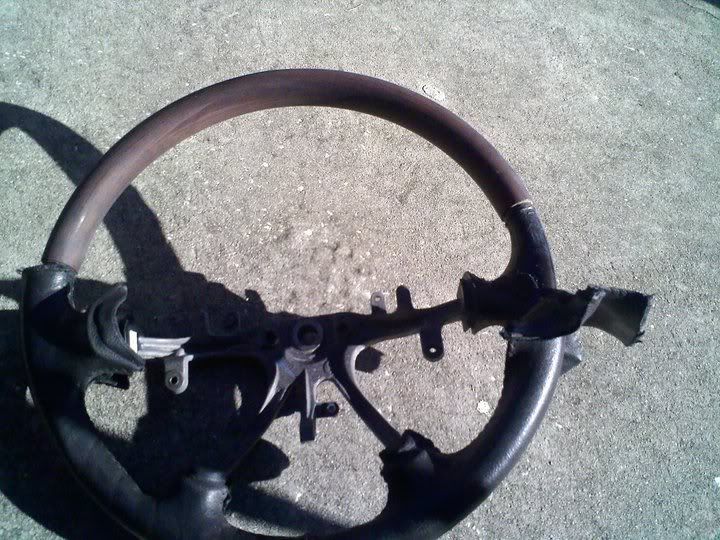

Torn and damaged wood wheel I had laying around. I sanded the wood section and prepped it for paint.

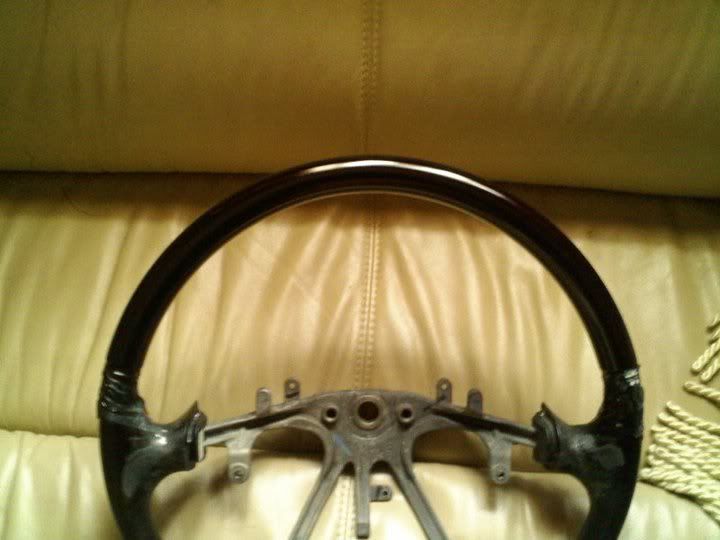

I originally wanted the wood grain to show thru. So instead of spend countless hours removing the factory varnish...and stain the wood veneer. I just spayed it with 2 coats of Niteshades tail light tint.


I changed my mind on the whole "tinted wood" idea, because it would be out of place IMO...since everything else is solid black. SO that's what I did.

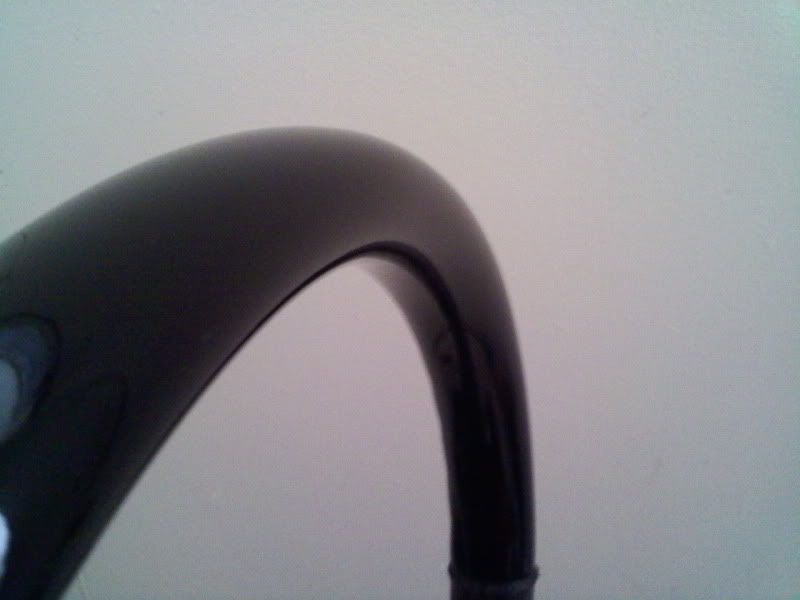

I used a 2 part autograde clear coat (PPG). Spray paint wouldn't hold up to continuous traffic. The clear layed down PERFECT and I don't even need to wetsand/buff it. No orange peel.

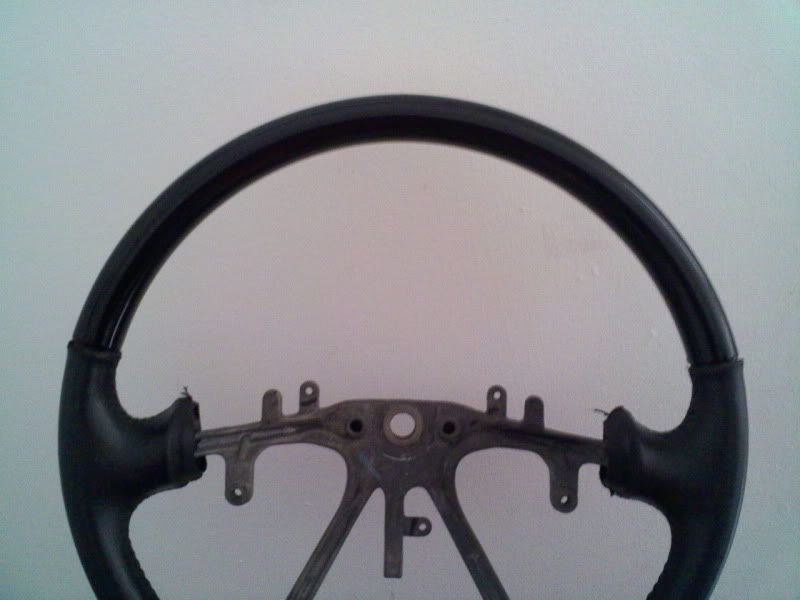

Restitched some good leather unto the wheel.

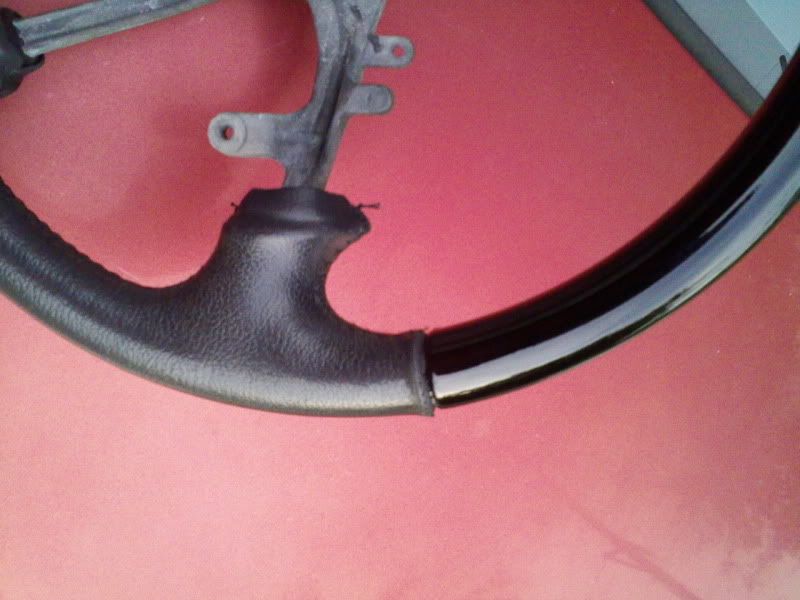

Small gap between the new wheel and the new leather. I coulda lived with it.

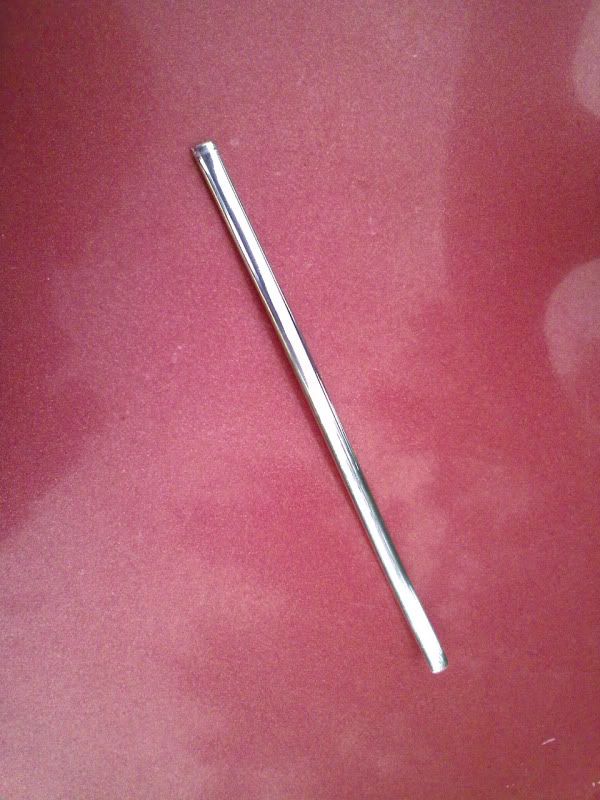

Small piece of flexible 1/8 chrome strip

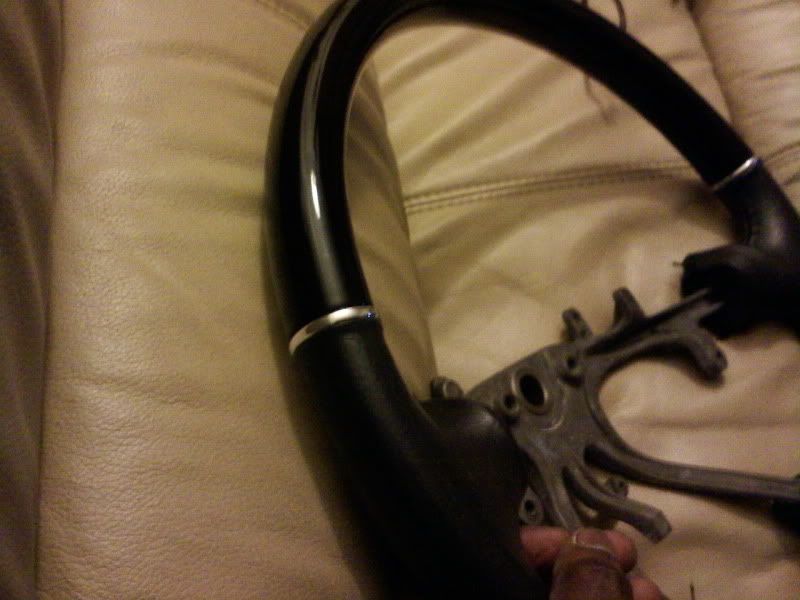

Measuring the strip to fit. Will look great with my chrome shifter.

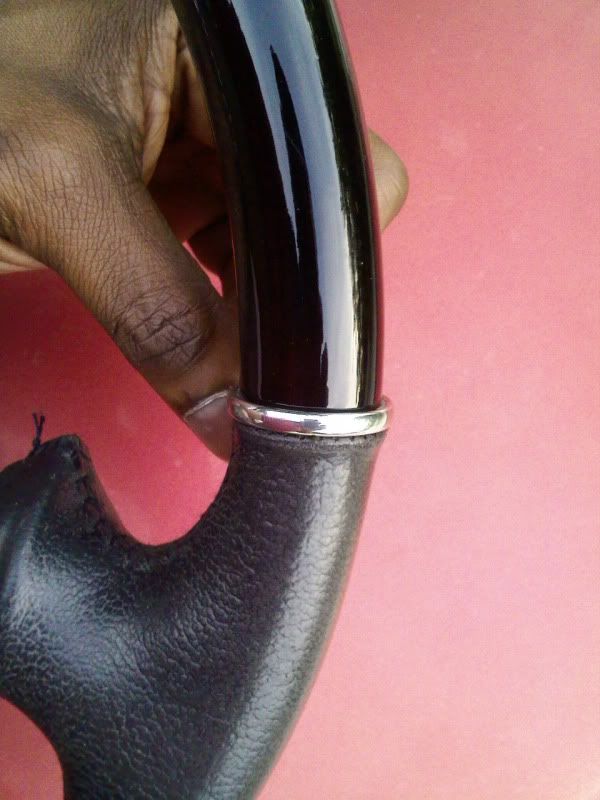

Leather was trimmed, so the strip would sit flush. Then it was glued into place.

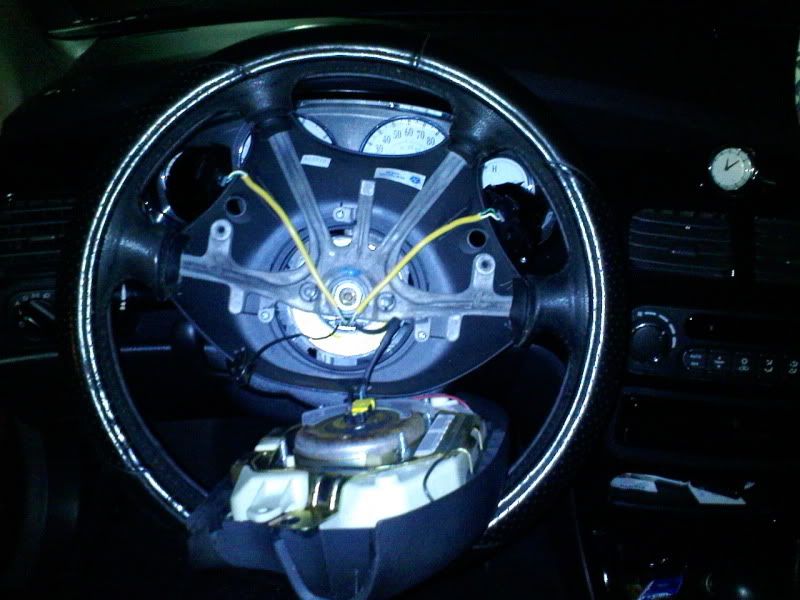

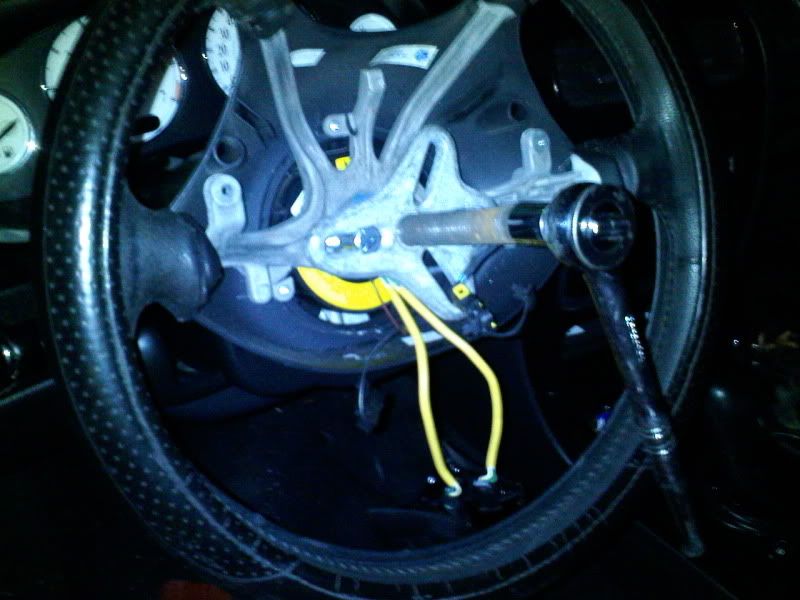

removing the steering wheels

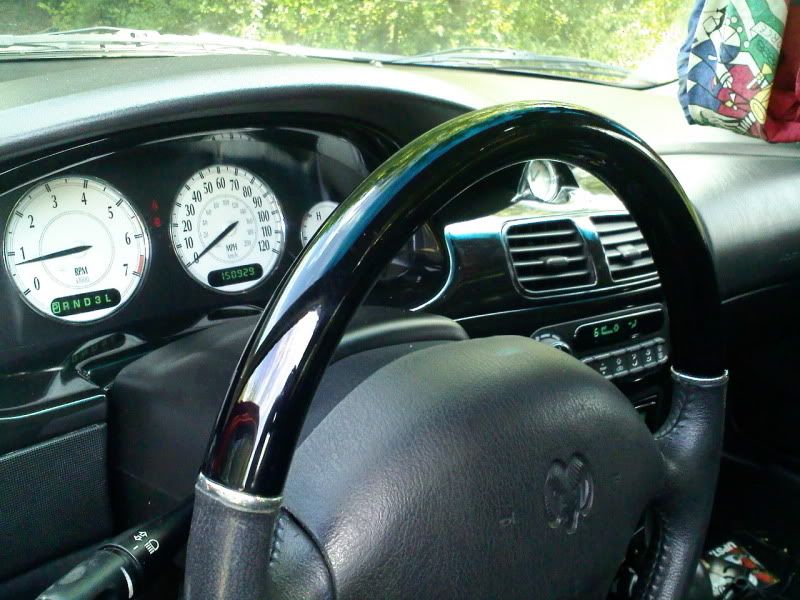

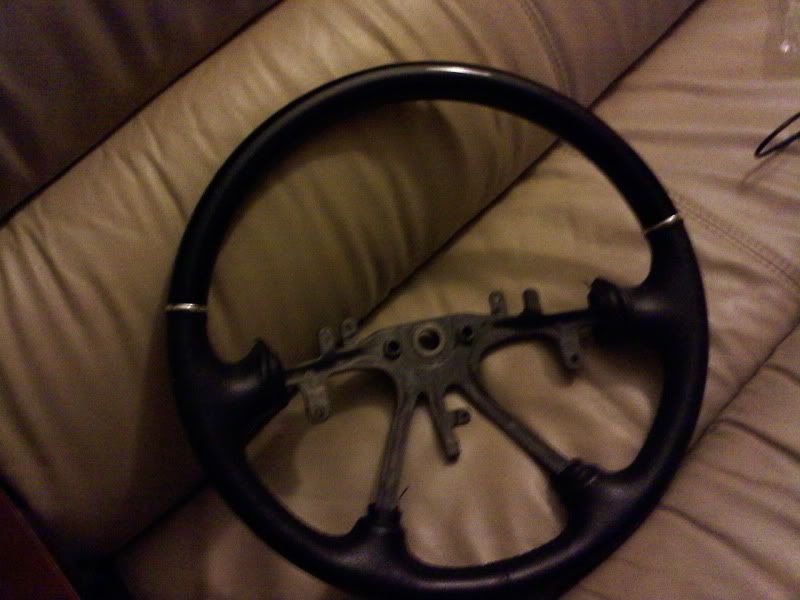

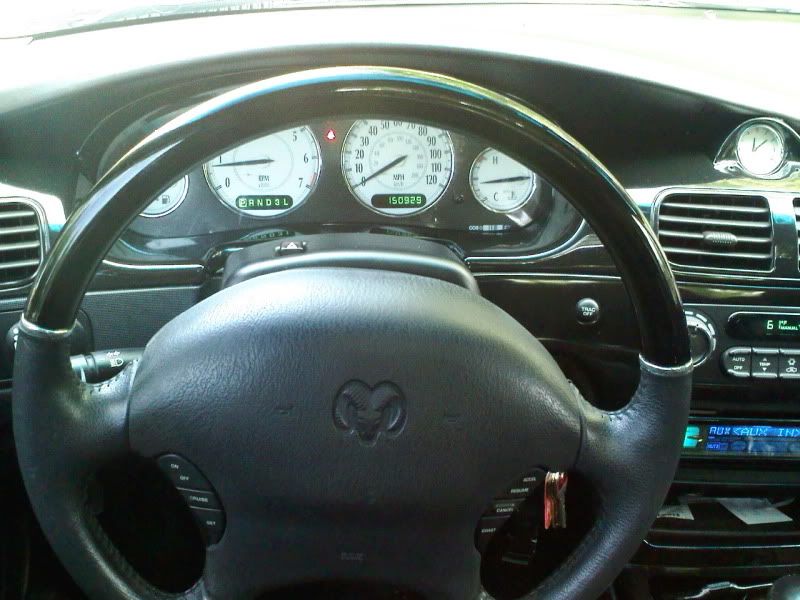

Finished...

Just need to clean/condition the leather a bit.

Quote:
Originally Posted by Dudley View Post
Gonna go have sex.... be back in 30 seconds............
MeanMugga is offline
post #65 of 239 (permalink) Old 06-12-2011, 01:17 AM
Intrepid Pro

gearhead291's Avatar

Join Date: Apr 2008
Location: georgia
Posts: 5,642
Feedback: 2 / 75%

lookin pretty sweet !!!
gearhead291 is offline
post #66 of 239 (permalink) Old 06-12-2011, 06:03 AM
Intrepid Pro

Duds's Avatar

Join Date: Oct 2006
Location: Ohio
Posts: 22,212
Feedback: 12 / 100%

Wow Wendell, what an awesom job! You need to be starting a buisiness doing this. Can I be your first customer??

Did you say what the finish was you used on the wood??
Never mind. I see it. I agree, a rattlecan grade paint would never hold up.
The chrome trim looks perfect!

Last edited by Duds; 06-12-2011 at 06:06 AM.
Duds is offline
post #67 of 239 (permalink) Old 06-12-2011, 12:00 PM
Intrepid Pro

Intrep_ED's Avatar

Join Date: Oct 2003
Location: Orange Park, FL.
Posts: 19,530
Feedback: 8 / 100%

Garage
Looks really good Wendell!
Intrep_ED is offline
post #68 of 239 (permalink) Old 06-12-2011, 10:14 PM Thread Starter
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

Quote:
Originally Posted by Duds View Post
Wow Wendell, what an awesom job! You need to be starting a buisiness doing this. Can I be your first customer??

Did you say what the finish was you used on the wood??
Never mind. I see it. I agree, a rattlecan grade paint would never hold up.
The chrome trim looks perfect!
Thanks Duds, means a lot. I do some work on the side. Doing a couple fiberglass pods for someone as we speak. When I get a job at an actual shop, I'll be doing more side work. It took me about 40 min, just to put the little chrome strips. I wanted a nice fit and finish.

Quote:
Originally Posted by Intrep_ED View Post
Looks really good Wendell!
Thanks Edro!
MeanMugga is offline
post #69 of 239 (permalink) Old 06-12-2011, 10:16 PM Thread Starter
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

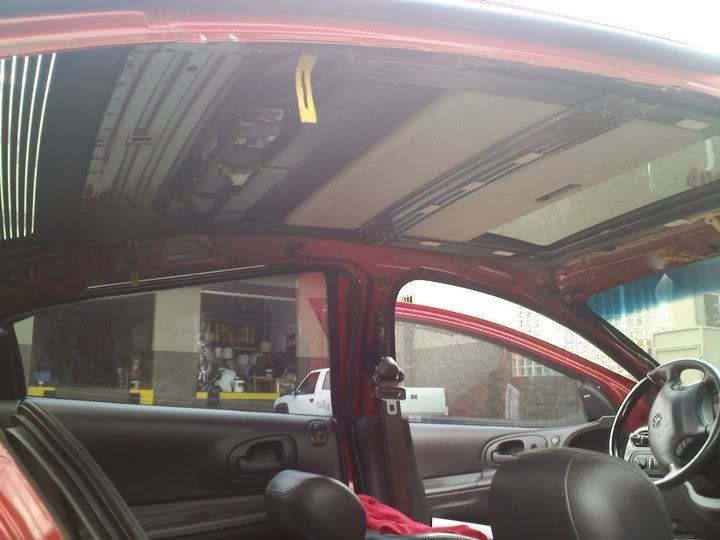

The current state of my interior....





More updates coming soon...
MeanMugga is offline
post #70 of 239 (permalink) Old 06-12-2011, 10:20 PM
Intrepid Pro

Squilliam's Avatar

Join Date: Nov 2008
Location: Greater Pittsburgh, PA
Posts: 15,047
Feedback: 2 / 100%

MMMMMmmmmmm, sooo sexy! Looking great as always Wendy!
Squilliam is offline
post #71 of 239 (permalink) Old 06-12-2011, 10:32 PM Thread Starter
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

Quote:
Originally Posted by wlb136 View Post
MMMMMmmmmmm, sooo sexy! Looking great as always Wendy!
Me or the mod?

Thanks Squilly!
MeanMugga is offline
post #72 of 239 (permalink) Old 06-12-2011, 10:35 PM
Intrepid Pro

Squilliam's Avatar

Join Date: Nov 2008
Location: Greater Pittsburgh, PA
Posts: 15,047
Feedback: 2 / 100%

Quote:
Originally Posted by MeanMugga View Post
Me or the mod?

Thanks Squilly!




Squilliam is offline
post #73 of 239 (permalink) Old 06-12-2011, 11:02 PM Thread Starter
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

Quote:
Originally Posted by wlb136 View Post




lmao
MeanMugga is offline
post #74 of 239 (permalink) Old 06-13-2011, 12:06 AM
Intrepid Newbie

Intrepid Fridge's Avatar

Join Date: May 2009
Location: Orlando, FL
Posts: 29
Feedback: 0 / 0%

Very Good bro!
Intrepid Fridge is offline
post #75 of 239 (permalink) Old 06-13-2011, 12:21 AM Thread Starter
Intrepid Pro

MeanMugga's Avatar

Join Date: Mar 2005
Location: Orlando, Florida
Posts: 3,027
Feedback: 16 / 100%

Quote:
Originally Posted by Intrepid Fridge View Post
Very Good bro!
Thanks! did you ever put those 22s on your car? If so, post some pics!
