I LOVE free stuff!

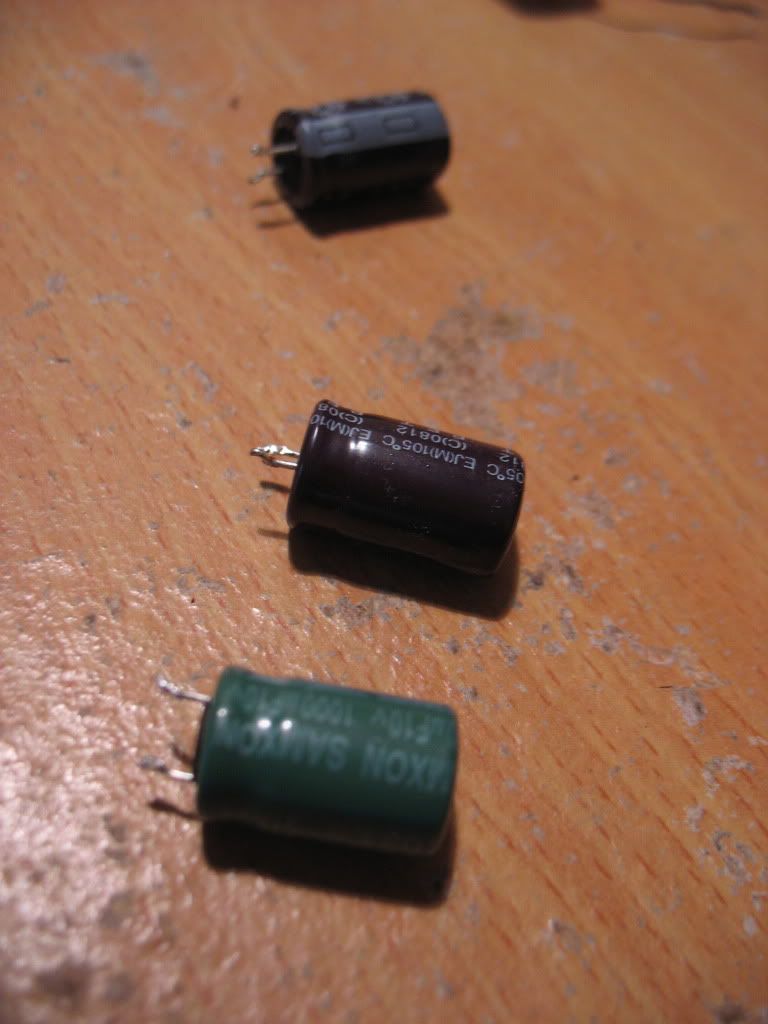

I was given two LCD computer screens at work, or I just dug them out of the trash. Brought them home took a wild guess as to what was wrong and bought replacement parts totaling 7 bucks. In the Accer I located two bad Capacitors(black), which I replaced and in the Samsung just one Bad capacitor.(green)








MVI_0005.mp4 video by EagleESi94 - Photobucket

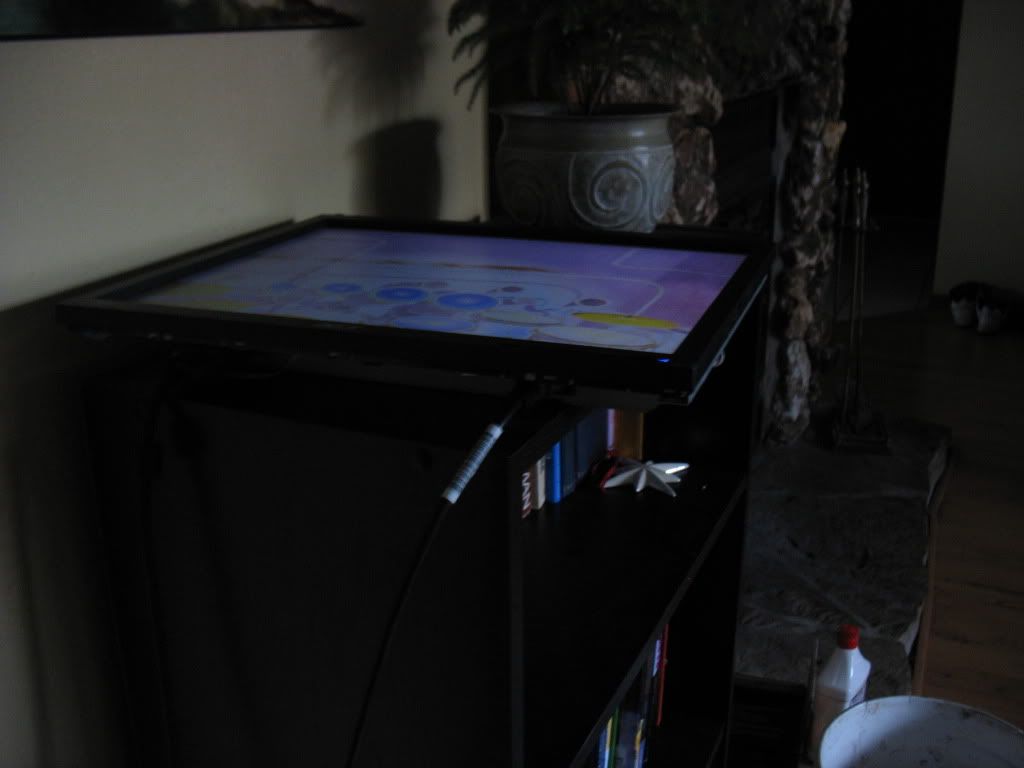

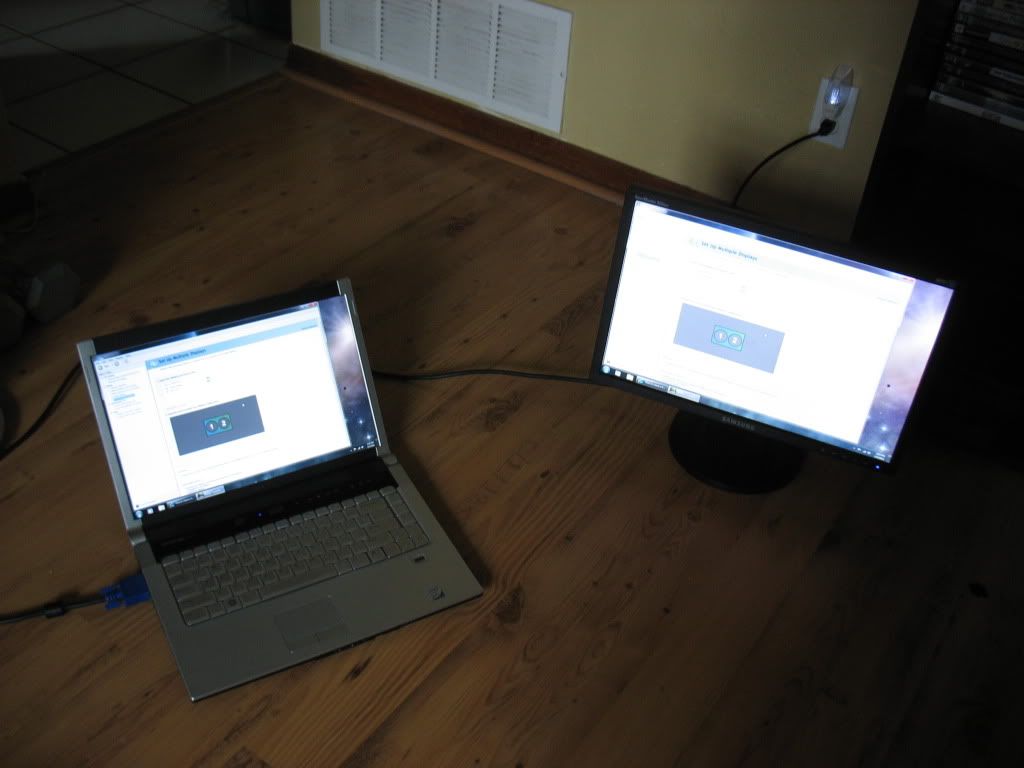

I have to say, for some one with no electrical repair training I am pretty awesome! This makes a total of 3 LCD screens I have fixed. One 32in LCD, One 19in (I think) accer and one 17in Widescreen Samsung all for less than 10 bucks!

EagleESI is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 02-03-2011, 07:50 PM
1st Gen FTW - It's AutoMedic!


cdmccul's Avatar

Join Date: Jun 2008
Location: Garrison, ND
Posts: 15,449
Feedback: 18 / 100%

Pretty cool! Component replacement parts like that make repair really easy, yes seem magical. Congrats on your new toys!

What made you say those were the bad parts?
cdmccul is offline
post #3 of 12 (permalink) Old 02-03-2011, 08:03 PM
Intrepid Pro

trepnician's Avatar

Join Date: Oct 2009
Location: Delaware
Posts: 6,638
Feedback: 1 / 100%

nice job! fixing electrical problems always brings more satisfaction than mechanical problems to me personally!
trepnician is offline
Sponsored Links
Advertisement

post #4 of 12 (permalink) Old 02-03-2011, 09:32 PM
Garfield Rules

95trep3.3's Avatar

Join Date: Apr 2003
Location: Summerville, SC
Posts: 9,144
Feedback: 4 / 100%

How did you tell if it was bad. my cousin gust gave me a monitor that we think has a bad compacter but I am not sure how to tell which one is bad.
95trep3.3 is offline
post #5 of 12 (permalink) Old 02-03-2011, 09:37 PM Thread Starter
Intrepid Pro

EagleESI's Avatar

Join Date: Oct 2005
Location: Chatt, TN
Posts: 4,277
Feedback: 3 / 100%

Alot of the times when a Cap like these go bad, the top gets domed or pushed out. This is a visual clue. I also look for heat marks on the board or corrosion. To check a cap using a Ohm meter on a multimeter, it should jump up to a number, and then slowly go down if it is bad. If it goes up and continues then it is good. Always reverse the leads after every test to make sure you got them right.

Diodes I believe will just crack open if they go bad. Atleast the one in the 32 in LCD did.

EagleESI is offline
post #6 of 12 (permalink) Old 02-03-2011, 09:38 PM
1st Gen FTW - It's AutoMedic!


cdmccul's Avatar

Join Date: Jun 2008
Location: Garrison, ND
Posts: 15,449
Feedback: 18 / 100%

If you think it is a bad cap, and you can't tell which one it is, I'd do a Google search on it and make sure that it isn't already reported on a fixit forum.

Otherwise, bad caps can be found by having either burned, or they can leak out the liquid they are filled with... the will then fail. Also, many time the liquid they have will eat traces and other components, so when you pop out the capacitor it is a good idea to investigate the traces and other solder joints surrounding it for damage.

As Devan just said a little better, yes, they dome or buldge - generally from having cheap cans and expanding due to heat - and this is was allows the electrolyte to leak out.
cdmccul is offline
post #7 of 12 (permalink) Old 02-03-2011, 09:41 PM
Bitches be like...



beeblebrox82's Avatar

Join Date: Nov 2007
Location: Holland, MI
Posts: 16,618
Feedback: 6 / 100%

Garage
There was a huge quality issue at one of the main capacitor manufacturers a few years back, very common problem across tons of different products to experience latent failures. I have a DVD recorder that some day I'll get around to fixing 6 or 7 bad caps on. Great fix Devan!1
beeblebrox82 is offline
post #8 of 12 (permalink) Old 02-03-2011, 10:05 PM
Intrepid Pro

01Intrepid's Avatar

Join Date: Jul 2001
Location: Greenville, South Carolina
Posts: 4,498
Feedback: 5 / 100%

lol... Sweet!!! Check out Freecycle.com and join a group in your area!! PPL always giving out good stuff that they don't want for free!!!
01Intrepid is offline
post #9 of 12 (permalink) Old 02-03-2011, 10:19 PM
1st Gen FTW - It's AutoMedic!


cdmccul's Avatar

Join Date: Jun 2008
Location: Garrison, ND
Posts: 15,449
Feedback: 18 / 100%

Freecycle ROCKS
cdmccul is offline
post #10 of 12 (permalink) Old 02-03-2011, 11:04 PM
Garfield Rules

95trep3.3's Avatar

Join Date: Apr 2003
Location: Summerville, SC
Posts: 9,144
Feedback: 4 / 100%

Thanks guys I'm gonna look at it now. my cousin looked at but I haven't yet.
95trep3.3 is offline
post #11 of 12 (permalink) Old 02-04-2011, 12:48 AM
Intrepid Pro

Scooter-Man's Avatar

Join Date: Dec 2006
Location: Va Beach, VA
Posts: 14,472
Feedback: 6 / 100%

Quote:
Originally Posted by crg616 View Post
nice job! fixing electrical problems always brings more satisfaction than mechanical problems to me personally!
Chasing electrons sucks, give my a wrench.
Scooter-Man is offline
post #12 of 12 (permalink) Old 02-14-2012, 11:58 AM
Intrepid Newbie

EagleSC's Avatar

Join Date: Feb 2012
Location: Spartanburg, S.C.
Posts: 81
Feedback: 0 / 0%

Epic win sir.
